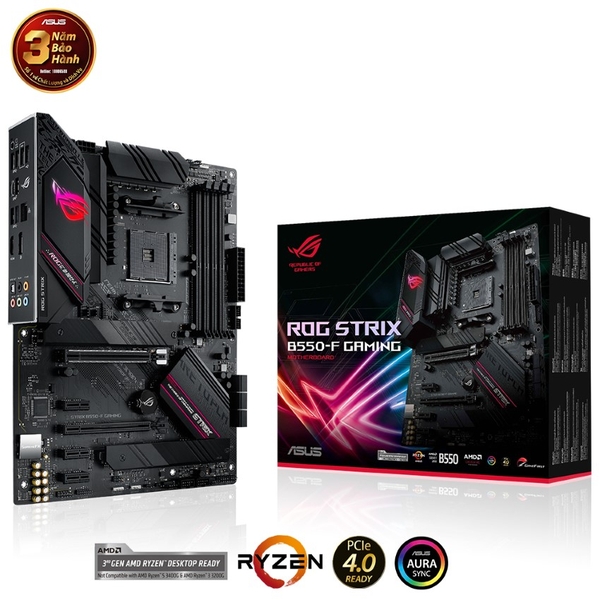

MAINBOARD ASUS ROG STRIX B550-F GAMING (AMD B550, SOCKET AM4, ATX, 4 KHE RAM DRR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

Rog Strix B550-F Gaming

Socket

AM4

Hỗ trợ CPU

Supports AMD 3nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors

Chipset

AMD B550

Hỗ trợ RAM

3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.

Cạc đồ họa

VGA onboard

Âm thanh

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Cạc mạng

Intel® I225-V 2.5Gb Ethernet

Khe cắm trong

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

Cổng giao tiếp ngoài

1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Kích thước

ATX
