Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB

ĐẶC ĐIỂM NỔI BẬT

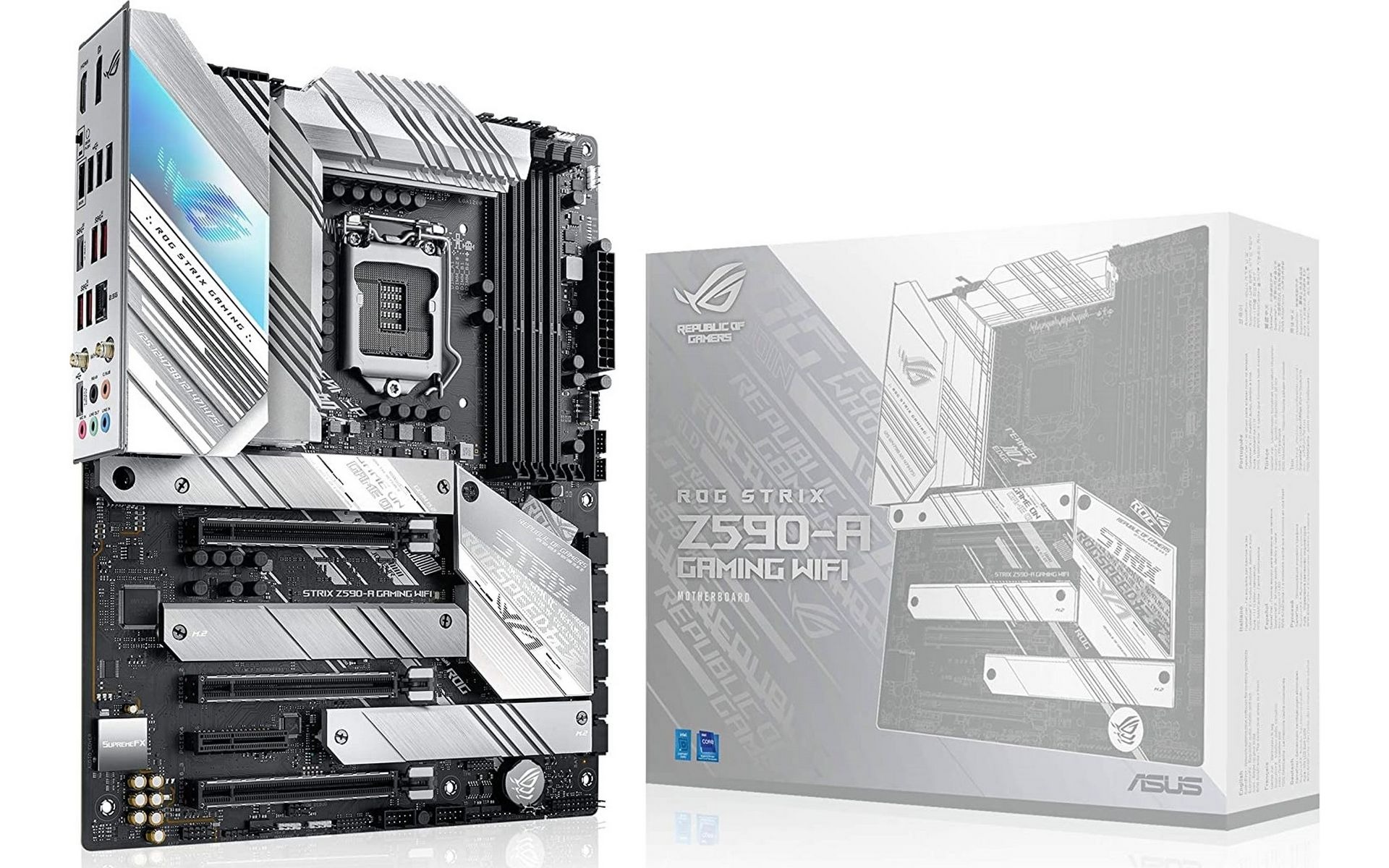

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI - là bo mạch chủ sử dụng chipset Z590 của Intel thuộc phân khúc tầm trung của Asus.Bo mạch chủ này sử dụng socket LGA 1200 có thể chạy được CPU Intel Core thế hệ 10 & 11.

Thiết kế

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI sở hữu thiết kế theo truyền thống của dòng Strix vô cùng bắt mắt. Phần giáp tản nhiệt kim loại được bố trí ở các vị trí quan trọng như khe PCI-e M.2, dàn phase nguồn,...

Các tính năng chính

Nâng cấp lớn nhất của các bo mạch chủ Z590 so với Z490 đó là sự hỗ trợ của kết nối PCI-e thế hệ 4.0 cho băng thông gấp đôi thế hệ 3.0 trước đó. Với sự hỗ trợ của băng thông lớn, giờ đây các ổ cứng SSD M.2 sử dụng trên bo mạch chủ Z590 có thể cho tốc dộ lên đến 7500Mb/s.

Nâng cấp thứ 2 đó là bus RAM mặc định được tăng từ 2933Mhz (Z490) lên 3200Mhz (Z590)

Ngoài ra, Asus còn tích hợp trên các bo mạch chủ của mình tính năng giảm nhiễu Audio 2 chiều cho khả năng đàm thoại rõ ràng hơn bao giờ hết.

Bo mạch chủ tích hợp trí thông minh nhân tạo

Các bo mạch chủ của Asus tích hợp trí thông minh nhân tạo được phát triển trong nhiều năm cho phép Overclock CPU, tự động điều chỉnh tốc độ quạt để tối ưu tản nhiệt và nhiều tính năng tự động khác.

Xem thêm

THÔNG SỐ KỸ THUẬT

Loại sản phẩm	Mainboard - Bo mạch chủ
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z590 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC) Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hình ảnh	1 x DisplayPort 1.4** 1 x HDMI 2.0 * Graphics specifications may vary between CPU types. " For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. " * For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4) Intel® 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) - Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Ổ cứng hỗ trợ	Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When M.2_2 is operating in SATA device, SATA6G_2 will be disabled. *When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.
LAN	1 x Intel® I225-V 2.5Gb Ethernet
USB	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C®) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Âm Thanh	"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
Cổng kết nối (I/O Phía sau)	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Cổng kết nối (I/O bên trong)	1 x Thunderbolt 4 header Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x TPM-M header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
