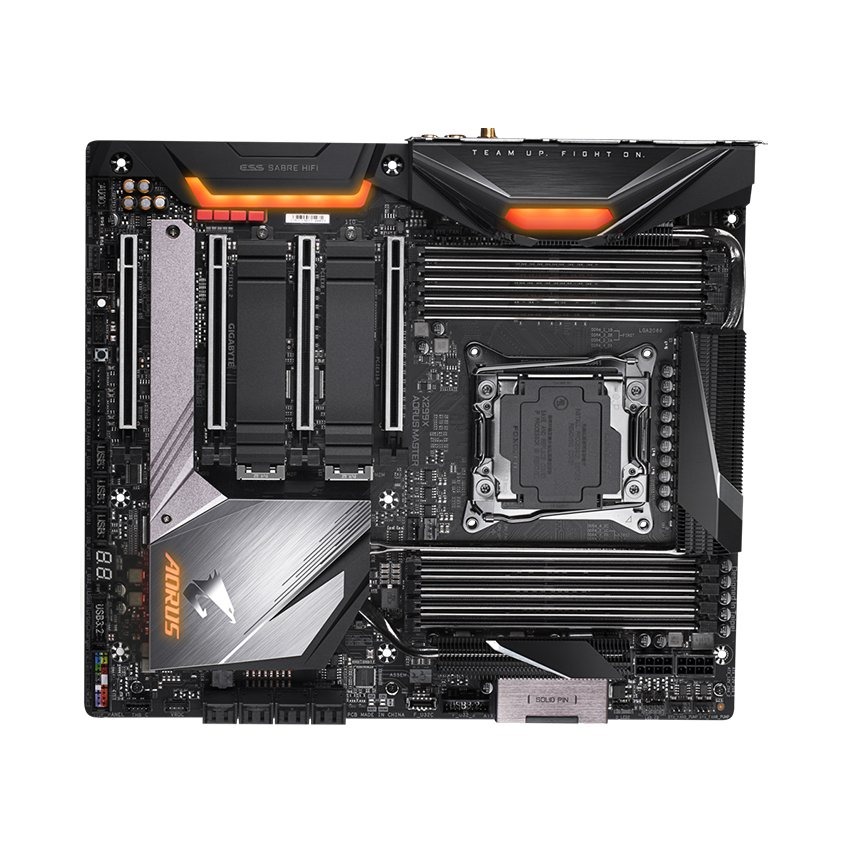

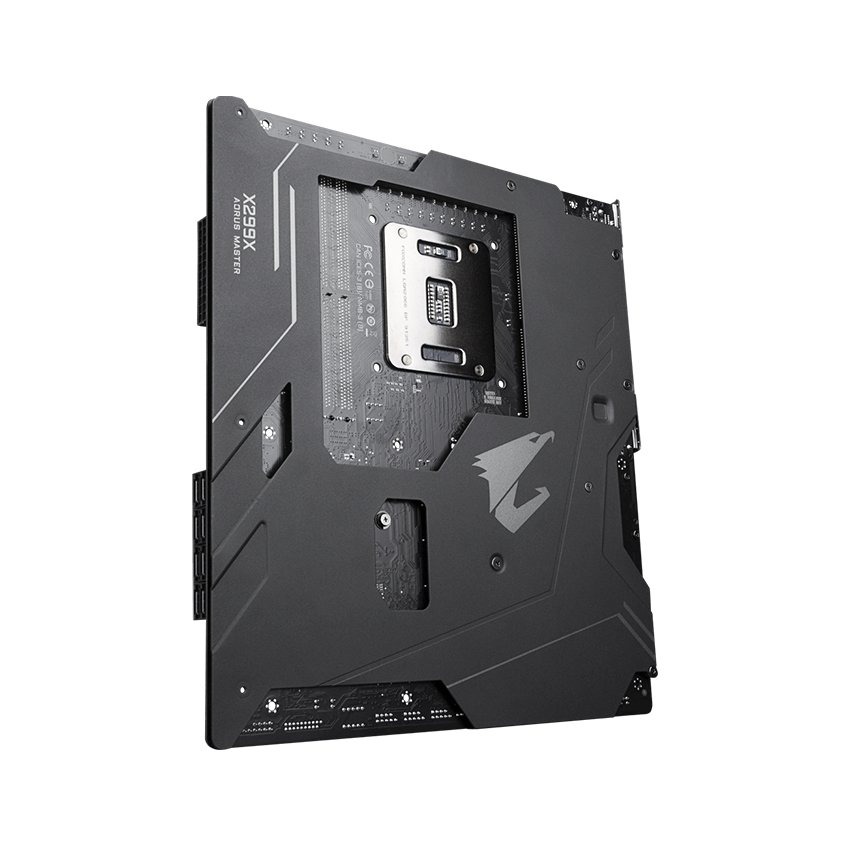

Mainboard GIGABYTE X299X AORUS MASTER Socket 2066

CPU

1. Support for Intel^® Core™ i7-7800X and above X series processors/Intel^® Core™ i9 X series processors in the LGA2066 package
2. L3 cache varies with CPU

1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules

1. 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
2. Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules

1. Realtek^® ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS SABRE9218 DAC chip
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
2. 1 x Intel^® GbE LAN chip (10/100/1000 Mbit) (LAN2)

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
   * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
   * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
   * The M2M and M2Q connectors become unavailable when an Intel^® Core™ X series 28-lane processor is used.

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)

1. The M2M and M2Q connectors must work with an Intel^® VROC Upgrade Key to support RAID configuration. If you want to use VROC, refer to Chapter 3-4, "Configuring Intel^® Virtual RAID on CPU (Intel^® VROC)," for setup instructions.
2. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

1. * Only Intel^® Core™ X series 48-lane processors support Intel^® Optane™ Memory.

1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

1. 2 x USB 3.2 Gen 1 ports on the back panel
2. 2 x USB 2.0/1.1 ports on the back panel

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 2 x USB 2.0/1.1 ports available through the internal USB header

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 8 x SATA 6Gb/s connectors
11. 1 x Intel^® VROC Upgrade Key header
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 3 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Thunderbolt™ add-in card connector
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x power button
21. 1 x reset button
22. 2 x temperature sensor headers
23. 1 x Clear CMOS jumper
24. 2 x BIOS switches

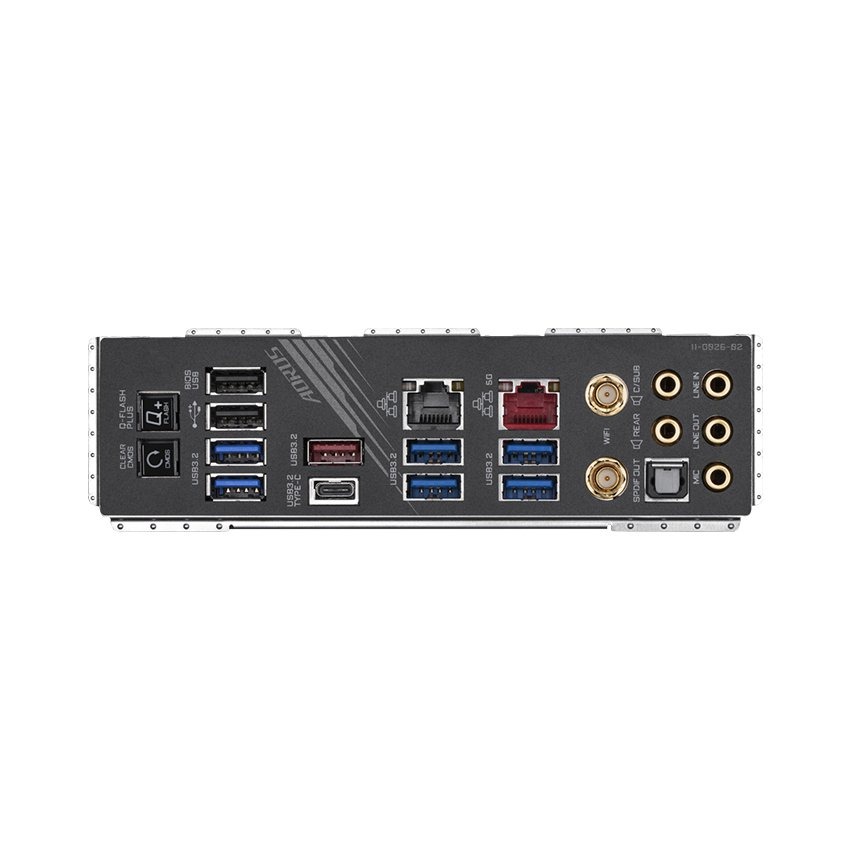

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 6 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 2 x RJ-45 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise Detection

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
   USB TurboCharger
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)
