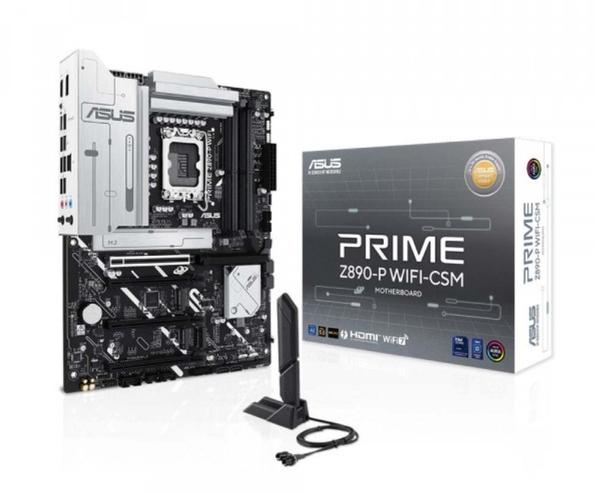

Bo Mạch Chủ Asus PRIME Z890-P WIFI-CSM

Loại sản phẩm

Mainboard

Thương hiệu

ASUS

Model

PRIME Z890-P WIFI-CSM

Hỗ trợ Socket

Supports Intel^® Core™ Ultra Processors (Series 2), LGA185*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0

Chipset

Intel^® Z890 Chipset

Hỗ trợ bộ nhớ

4 x DIMM slots, max. 192GB, DDR5
Support up to 7600+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel^® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

Khe mở rộng

Intel^® Core™ Ultra Processors (Series 2)
1x PCIe 5.0 x16 slot
Intel^® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

Srorage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel^® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Mạng Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Bluetooth, không dây

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth^® v5.

USB

Rear USB (Total 10 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C^®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Cổng I/O mặt sau

1 x Thunderbolt™ 4 USB Type-C^® port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^TM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Đầu nối I/O bên trong

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4^®) header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Hệ điều hành

Windows® 11  , Windows® 10  64-bit

Yếu tố hình thức

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
