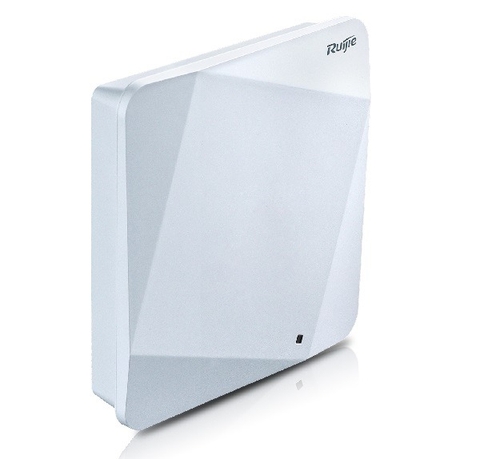

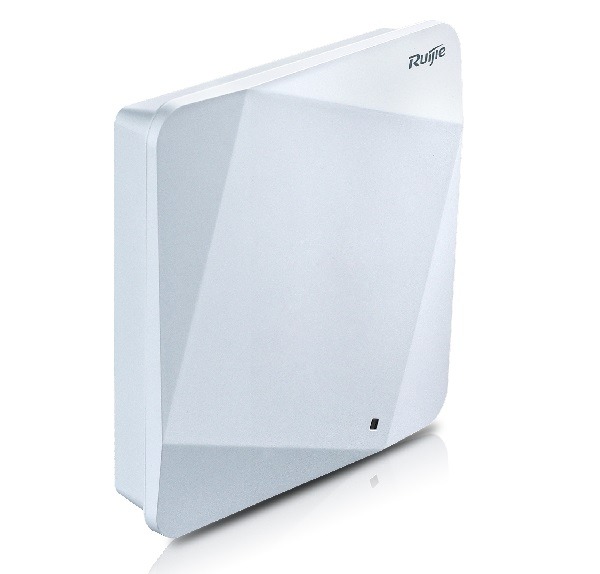

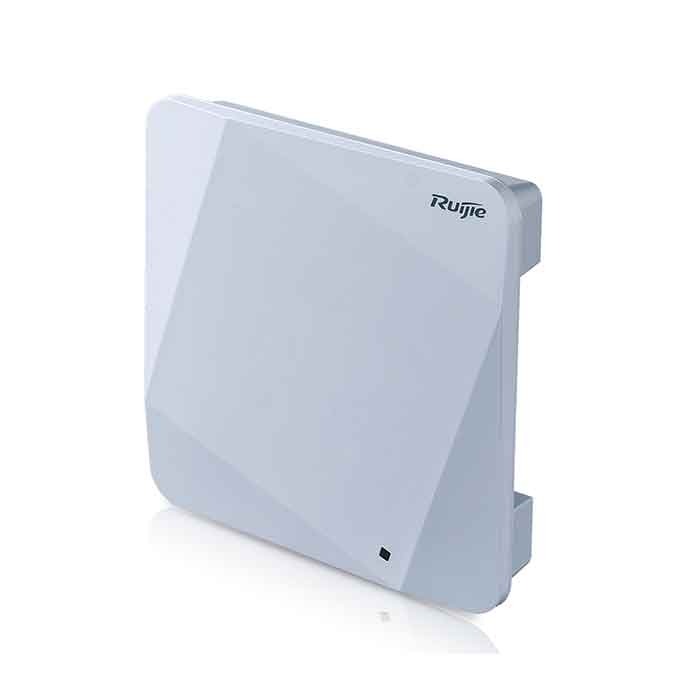

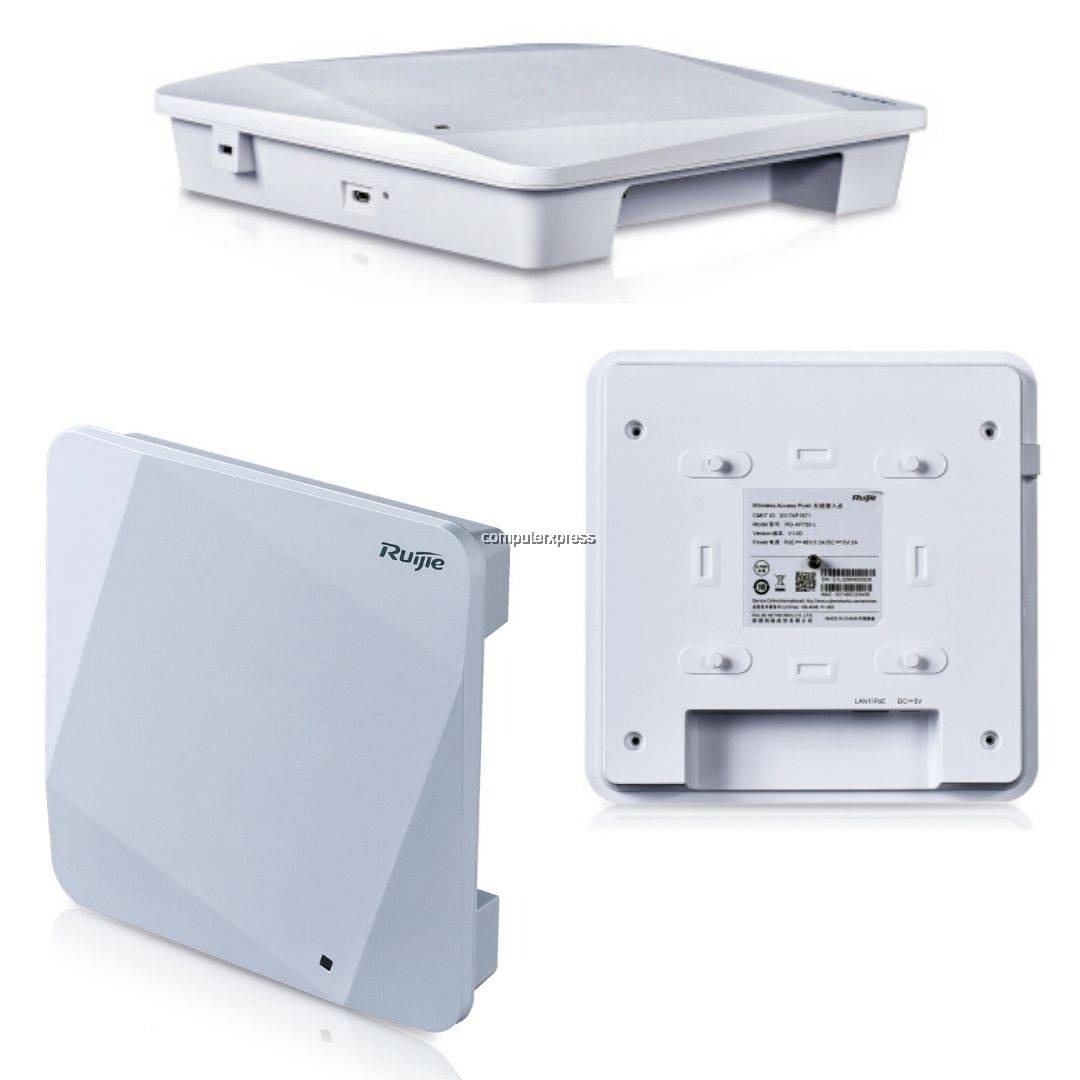

Thiết bị mạng wifi Ruijie RG-AP720-L ( Lắp đặt trong nhà 2 băng tầng 2.4Ghz và 5Ghz, tổng tốc độ truy cập lên tới 1.167Gbps)
Wifi Ruijie RG-AP720-L là thiết bị Wifi chuyên lắp đặt trong nhà với mật độ cao như nhà hàng, quán ăn, hotel... Ngoài ra Wifi Ruijie RG-AP720-L còn được tích hợp sẵn các tính năng về WIFI marketing:
Giao diện đăng nhập dạng trang chào, cho phép tuỳ biến theo logo, hình ảnh doanh nghiệp, thông điệp quảng bá, nút click trỏ đến trang đích là fanpage hoặc website của doanh nghiệp,
Đặc tính Wifi Ruijie RG-AP720-L
+ Thiết bị WIFI lắp trong nhà, chuẩn 802.11ac Wave 2 (thế hệ thứ 2),
+ 2 băng tầng 2.4Ghz và 5Ghz, tổng tốc độ truy cập lên tới 1.167Gbps,
+ 1 cổng 10/100/1000BASE-T uplink; 1 cổng điều khiển (Micro USB)
+ Tích hợp sẵn các tính năng về WIFI marketing:
Giao diện đăng nhập dạng trang chào, cho phép tuỳ biến theo logo, hình ảnh doanh nghiệp, thông điệp quảng bá, nút click trỏ đến trang đích là fanpage hoặc website của doanh nghiệp,
a. Đăng nhập facebook,
b. like facebook fanpage,
c. quản lý lưu lượng của người dùng theo tốc độ up/down, thời gian, dung lượng data, số lượt truy cập trong ngày.
+ Thiết bị mạng tích hợp sẵn dịch vụ Ruijie Cloud miễn phí, không giới hạn về thời gian
+ (PoE Injector bán riêng), Chưa bao gồm nguồn.
+ Số clients sử dụng đồng thời: 50-60 thiết bị,
+ Số kết nối đồng thời (connected): 200 thiết bị,
Sản phẩm Wifi Ruijie RG-AP720-L chuẩn 802.11ac Wave 2 (thế hệ thứ 2), 2 băng tầng 2.4Ghz và 5Ghz, tổng tốc độ truy cập lên tới 1.167Gbps,
C5802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to C55.850GHz (vary depending on countries)
Antenna
Built-in Antenna
Max Throughput
1167Mbps
Spatial Streams
2
Maximum Transmit Power
100mW
IP Rating
IP41
Interfaces
Service Ports
1x 10/100/1000BASE-T Ethernet uplink
Console Ports
1x Console Port
Power
Power Supply
local power supply (DC 5V/3A)
PoE (802.3af)
Power Consumption
<12.95W
WLAN
Maximum clients per AP
256
BSSID capacity
32
Remote Intelligent Perception Technology (RIPT)
Support
Intelligent load balancing based on the number of users or traffic
Support
STA control
Support
Bandwidth control
Support
Preference for 5GHz (band select)
Support
Security
PSK, Web, 802.1x authentication
Support
PPSK authentication
Support
Data encryption
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication
Support
User isolation
Support
Rogue AP detection and countermeasure
Support
RADIUS
Support
Wireless Intrusion Detection System(WIDS)
Support
Wireless Intrusion Prevention System (WIPS)
Support
Routing
IPv4 address
Static IP address or DHCP reservation
IPv6 address
Manual or automatic configuration
Multicast
Multicast to unicast conversion
Management and Maintenance
Network management
SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management
Support
FAT/FIT switching
Support
Physical Specification & Others
Lock
Support
LED Indicators
1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Dimensions (W x D x H)
194 × 194 × 37 mm
Weight
0.42kg
Environmental Specifications
Temperature
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
