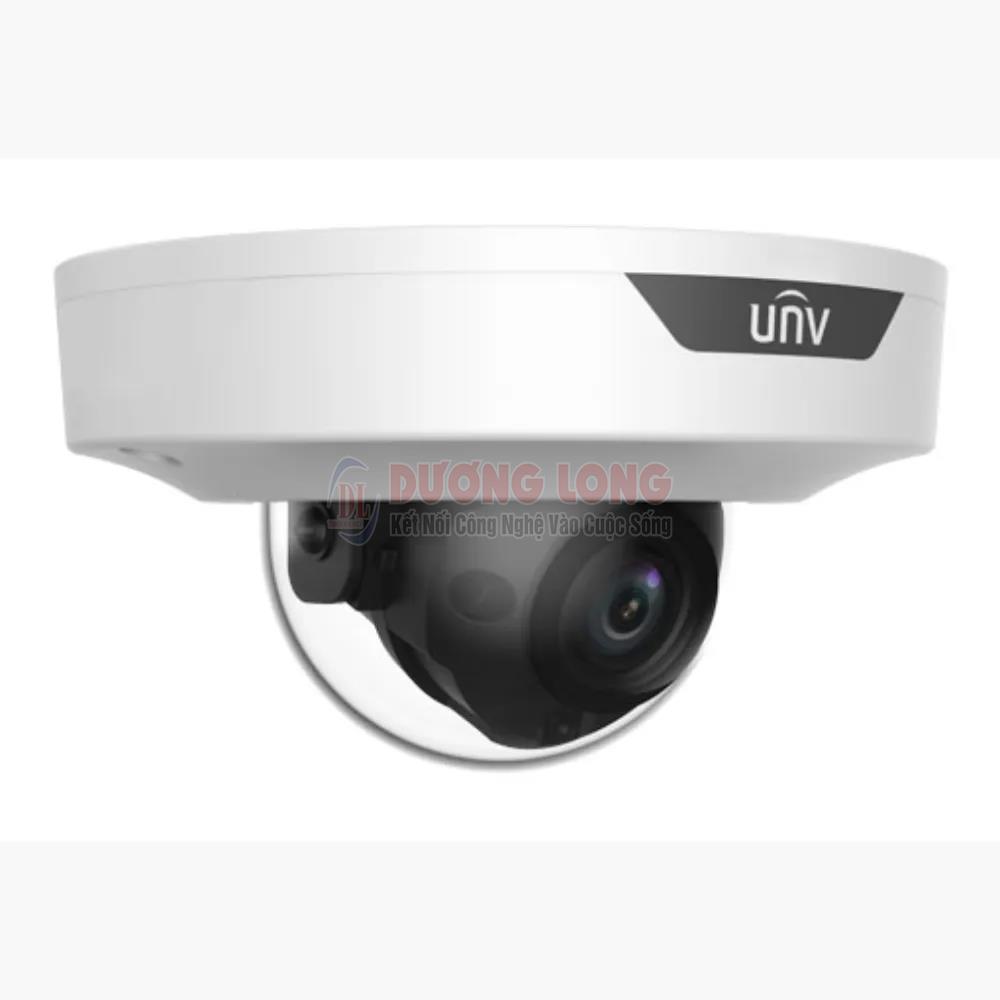

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB

ĐẶC ĐIỂM NỔI BẬT

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC354SR3-ADNPF28-F

- Camera IP Dome 4MP, chuẩn Ultra265.

- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.

- Chuẩn nén hình ảnh: Ultra265/H.265/H.264/MJPEG.

- Ống kính: 2.8mm.

- Hỗ trợ 3 luồng video.

- Tầm quan sát hồng ngoại: 30 mét.

- Độ nhạy sáng: 0.01Lux (F2.0, AGC ON).

- Công nghệ nén băng thông U-code.

- Hỗ trợ các chức năng: Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng thực WDR 120db.

- Hỗ trợ micro trên camera.

- Hỗ trợ cổng Alarm in/out 1/1.

- Hỗ trợ khe cắm thẻ nhớ 256GB.

- Chuẩn Onvif quốc tế.

- Hỗ trợ tên miền miễn phí trọn đời.

- Nguồn cấp: DC12V (±25%) và PoE.

- Chất liệu vỏ: Kim loại + Nhựa.

- Bảo hành: 24 tháng.

Xem thêm

THÔNG SỐ KỸ THUẬT

Model	IPC354SR3-ADNPF28-F
Camera
Sensor	1/3 inch, 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
Angle of View (H)	95.8°
Angle of View (V)	55.2°
Angle of View (O)	124.5°
Adjustment angle	Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 4MP (26881520), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps;1080P(19201080),Max30fps Sub Stream: 4CIF (704576), Max 30fps; Third Stream: CIF (352288), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance	Auto/ Outdoor/ Fine Tune/ Sodium Lamp/ Locked/ Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
HLC	Supported
BLC	Supported
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O	Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
Built-in Mic	Supported
Alarm I/O	1/1
Network	10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ108.6 x 61.8mm (Ø4.28” x 2.43”)
Net Weight	0.22kg (0.49lb)
Material	Metal + Plastic
Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	2KV
Reset Button	Supported
