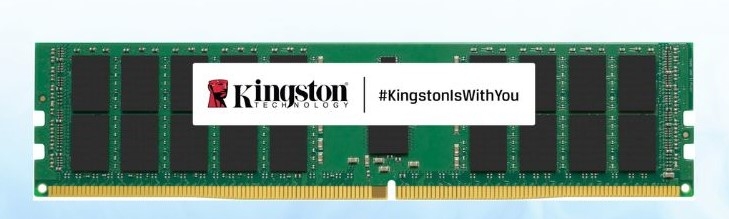

KSM48E40BD8KI-32HA | RAM Kingston 32GB 4800MT/s DDR5 ECC UDIMM

ĐẶC ĐIỂM NỔI BẬT

Nội dung đang được cập nhật

Category	Technical Specification
Product Model	KSM48E40BD8KI-32HA
Memory Type	DDR5 ECC Registered DIMM (RDIMM)
Capacity	32GB
Data Bus Configuration	x72 ECC (x36, 2 independent I/O sub-channels)
ECC	On-Die ECC
Internal Banks	32 banks
Repair Features	Hard/Soft Post Package Repair
Operating Voltage	- VDD = 1.1V (Typical) - VDDQ = 1.1V (Typical) - VPP = 1.8V (Typical) - VDDSPD = 1.8V to 2.0V
Sideband Access	Sideband access with I3C/I2C
Clock Latency (CL(IDD))	40 cycles
Row Cycle Time (tRCmin)	48ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin)	295ns (min.)
Row Active Time (tRASmin)	32ns (min.)
Row Precharge Time (tRPmin)	16ns (min.)
UL Rating	UL 94 V-0
Operating Temperature	0°C to +95°C
Storage Temperature	-55°C to +100°C
PCB Height	1.23” (31.25mm)
Environmental Compliance	RoHS Compliant, Halogen-Free
