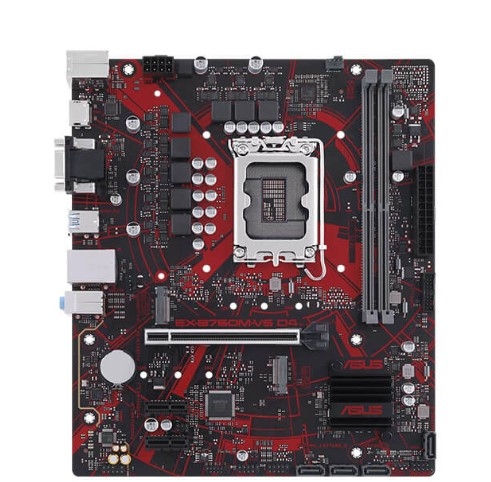

Mainboard Asus EX-B660M-V5 D4

Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB

ĐẶC ĐIỂM NỔI BẬT

Asus EX-B660M-V5 là dòng bo mạch chủ chipset B660 tầm trung, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 non K thế hệ Alder Lake.

Mainboard Asus EX-B660M-V5

Tính năng nổi bật

Chiếc mainboard B660 Asus EX sở hữu một khe M.2 PCI-e Gen 4 cho SSD M.2 tốc độ cao

Mainboard Asus EX-B660M-V5

Khe PCI-E Gen 4

Mainboard Asus EX-B660M-V5

Bo mạch chủ này dành cho ai?

Asus EX-B660M-V5 phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.

Xem thêm

THÔNG SỐ KỸ THUẬT

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
	Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Chipset	Intel® B660 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4
	5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x D-Sub port
	1 x HDMI® port**
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® 12th Gen Processors
	1 x PCIe 4.0/3.0 x16 slot
	Intel® B660 Chipset
	2 x PCIe 3.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280
	- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
	Intel® B660 Chipset**
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
	** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x Realtek 1Gb Ethernet
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 6 ports)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Premium audio capacitors
	- Audio Shielding
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x D-Sub port
	1 x HDMI® port
	3 x Audio jacks
	1 x Realtek 1Gb Ethernet port
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin Chassis Fan header
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	2x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x Speaker header
	1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Slot
	ASUS EZ DIY
	- ProCool
	Non-stop Action
	- Lightning Boot
	Non-stop Challenger
	- ASUS iCafe labs certified
	Non-stop Durability
	- Luminous anti-moisture coating
	- USBGuard
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	2 x M.2 Anchors
	Installation Media
	1 x Support DVD
	Documentation
	1 x User guide
Operating System	Windows® 10 64-bit, Windows® 11 64-bit
Operating System	Windows® 10 64-bit, Windows® 11 64-bit
Form Factor	mATX Form Factor
Form Factor	9.6 inch x 8.3 inch(24.4cm x 21.1cm)

Xem thêm

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
	Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Chipset	Intel® B660 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4
	5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x D-Sub port
	1 x HDMI® port**
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® 12th Gen Processors
	1 x PCIe 4.0/3.0 x16 slot
	Intel® B660 Chipset
	2 x PCIe 3.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280
	- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
	Intel® B660 Chipset**
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
	** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x Realtek 1Gb Ethernet
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 6 ports)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Premium audio capacitors
	- Audio Shielding
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x D-Sub port
	1 x HDMI® port
	3 x Audio jacks
	1 x Realtek 1Gb Ethernet port
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin Chassis Fan header
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	2x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x Speaker header
	1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Slot
	ASUS EZ DIY
	- ProCool
	Non-stop Action
	- Lightning Boot
	Non-stop Challenger
	- ASUS iCafe labs certified
	Non-stop Durability
	- Luminous anti-moisture coating
	- USBGuard
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	2 x M.2 Anchors
	Installation Media
	1 x Support DVD
	Documentation
	1 x User guide
Operating System	Windows® 10 64-bit, Windows® 11 64-bit
Operating System	Windows® 10 64-bit, Windows® 11 64-bit
Form Factor	mATX Form Factor
Form Factor	9.6 inch x 8.3 inch(24.4cm x 21.1cm)
