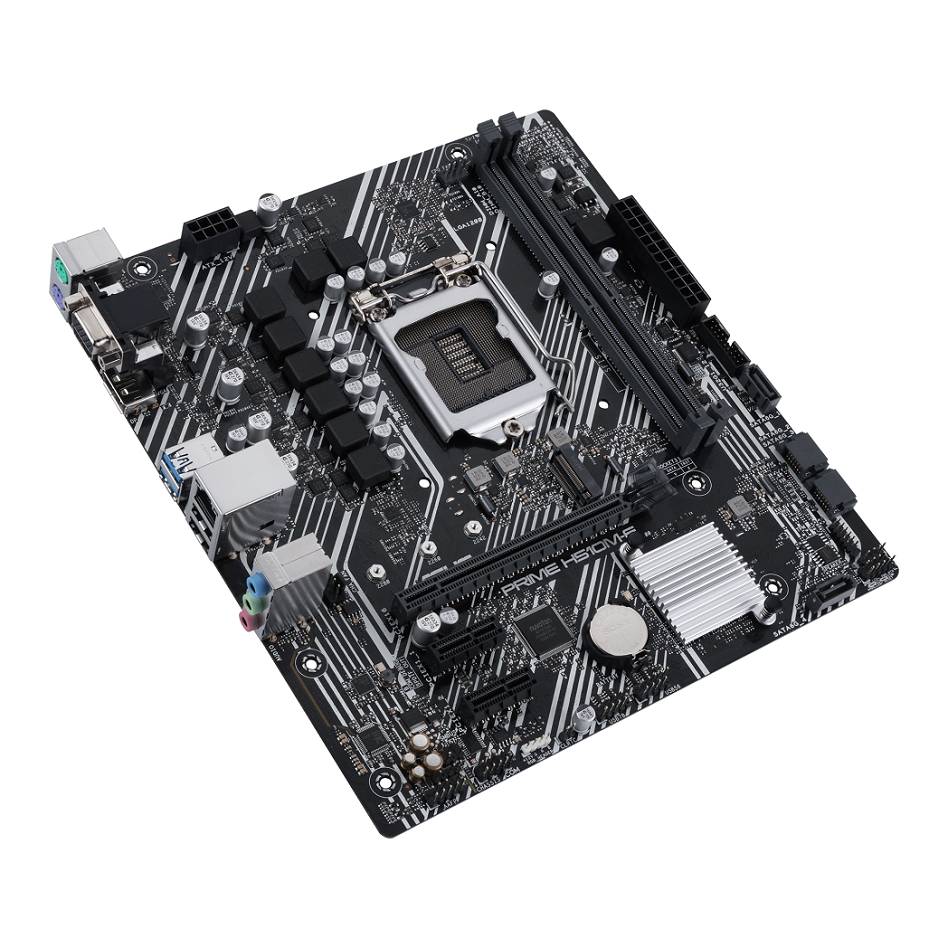

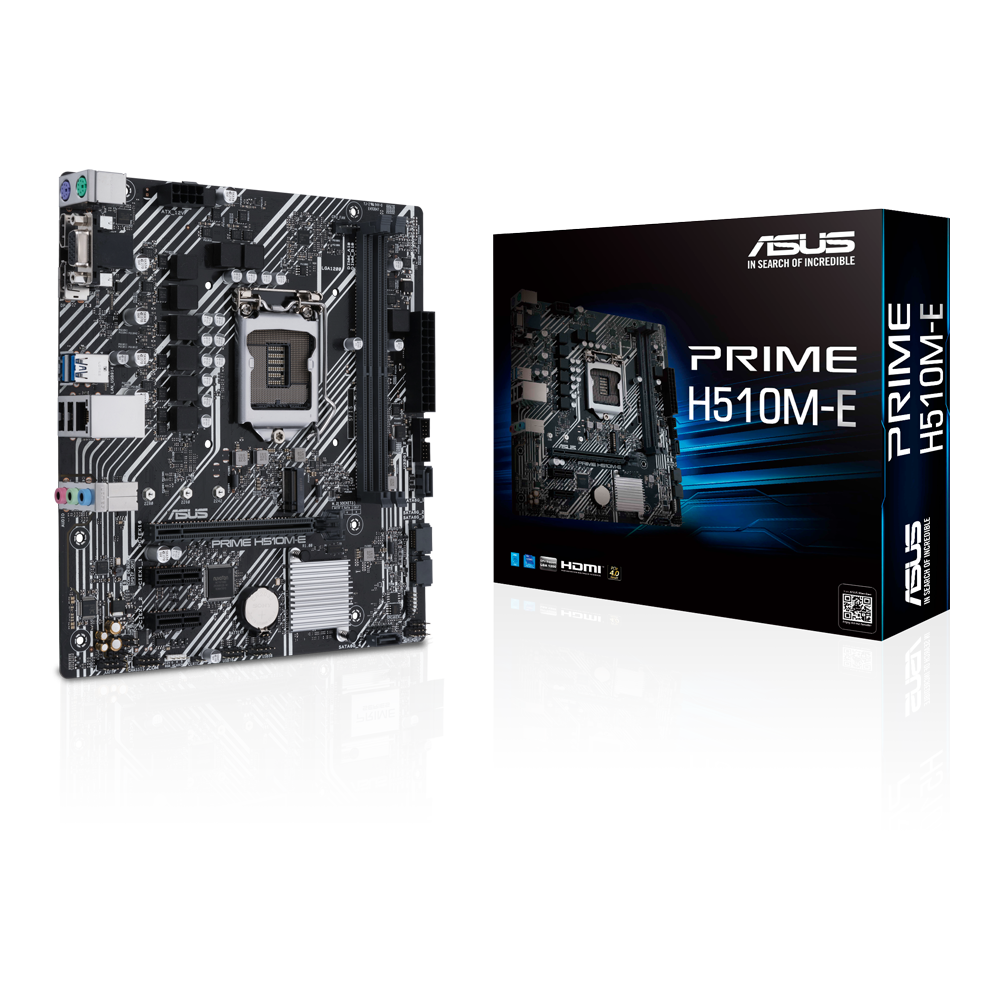

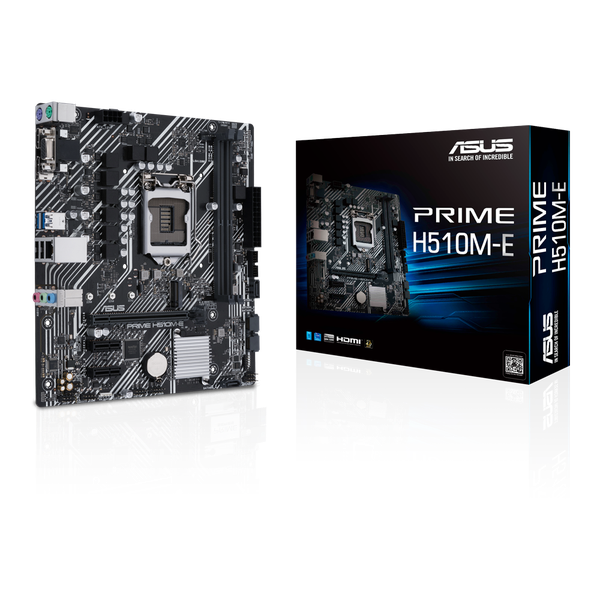

Mainboard ASUS PRIME H510M-E Socket 1200

Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency

1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI™ 1.4 / 2.0***

* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots Intel® 11th & 10th Gen Processors

Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset
2 x PCIe 3.0 x1 slots

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used

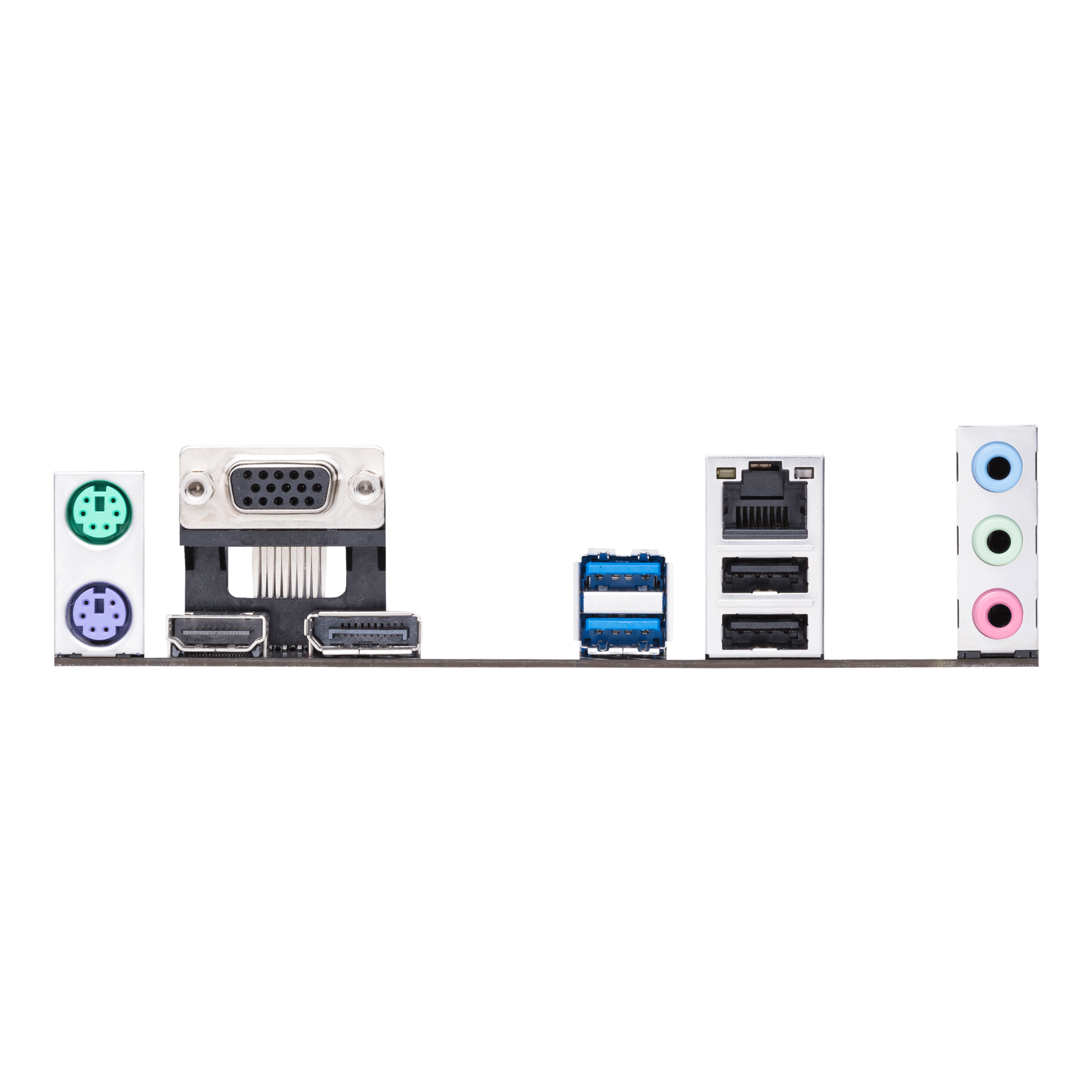

Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS Thermal Solution
- Aluminum heatsink design

ASUS Lighting Control
- RGB header

Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package

Installation Media
1 x Support DVD

Documentation
1 x User manual
