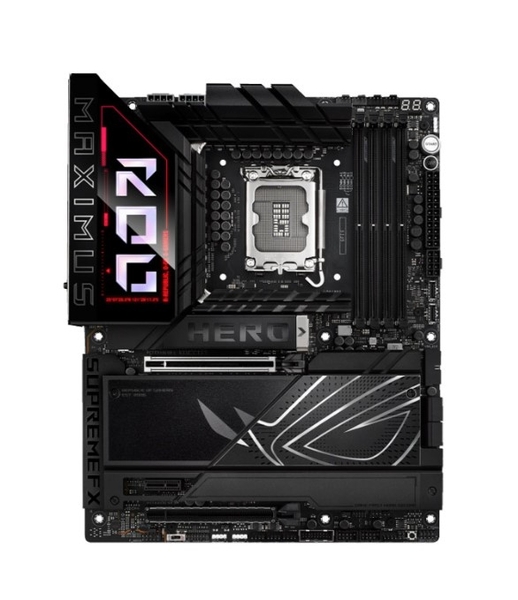

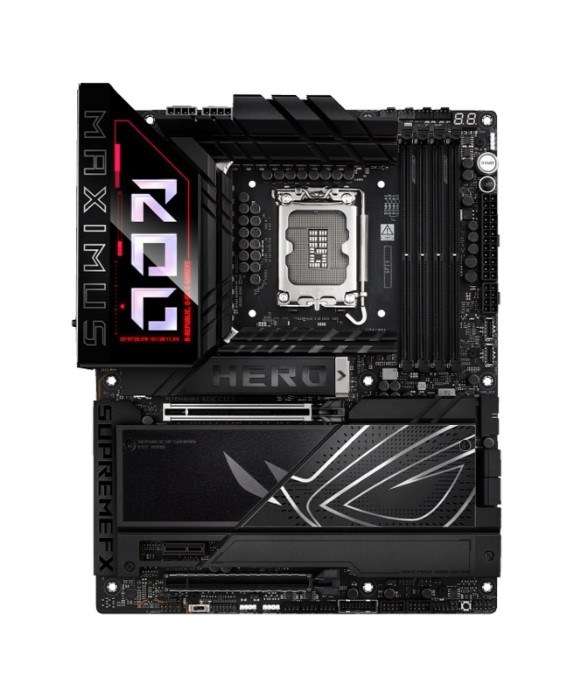

Mainboard Asus ROG MAXIMUS Z890 HERO DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)

Khe cắm mở rộng

Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ

Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

Intel Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x 8-pin PCIe Power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS connector
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gps connector (supports USB Type-C )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

Cổng kết nối (Back Panel)

2 x Thunderbolt™ 4 USB Type-C ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

LAN / Wireless

LAN

1 x Intel 2.5Gb Ethernet

1 x Realtek 5Gb Ethernet


Wireless

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth^® v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm
