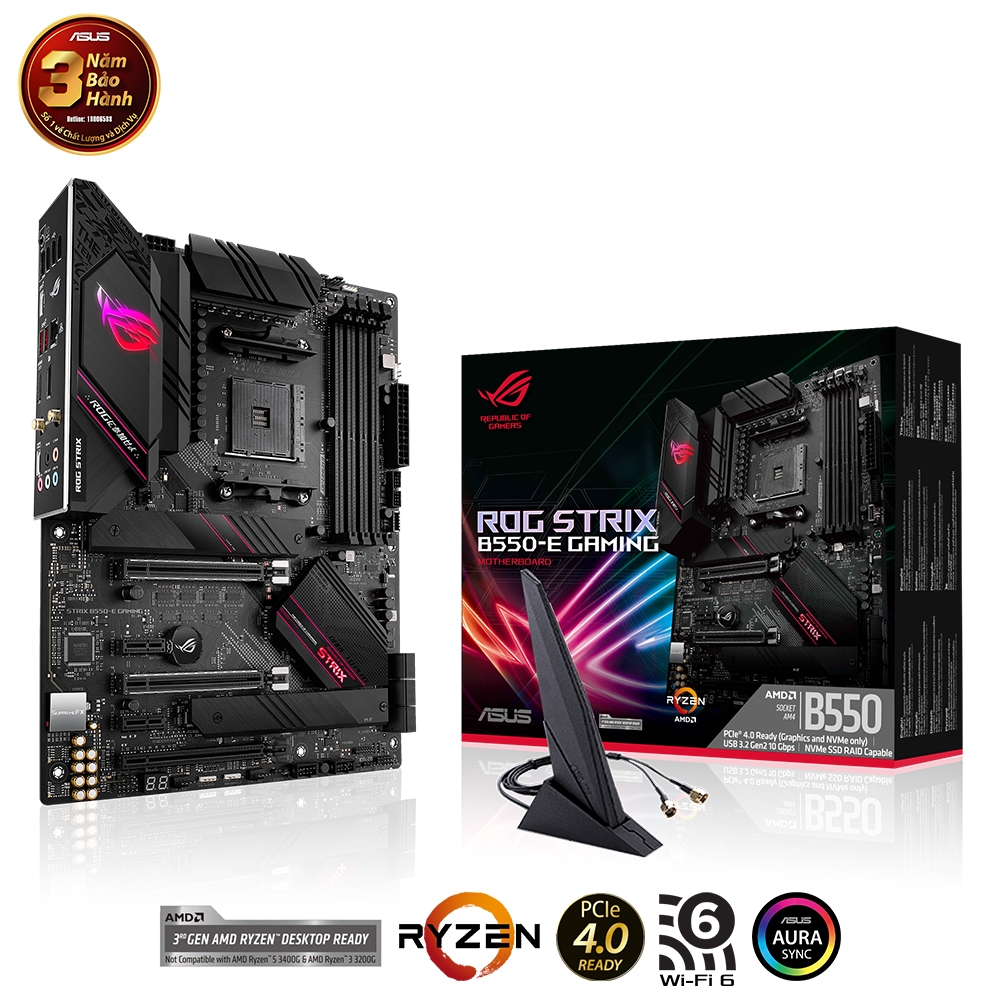

MAINBOARD ASUS ROG STRIX B550-E GAMING (AMD B550, SOCKET AM4, ATX, 4 KHE RAM DRR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B550-E GAMING

Socket

AM4

Hỗ trợ CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Hỗ trợ RAM

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

AMD RyzenTM 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Cạc đồ họa

VGA onboard

Hỗ trợ đa GPU

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Âm thanh

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

Cạc mạng

Intel® Wi-Fi 6 AX200

Khe cắm trong

1 x M.2_2 socket 3,

AMD RyzenTM 4000 G-Series Processor :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Cổng giao tiếp ngoài

3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)

5 x USB 2.0 (1 for audio USB Type-C®)

1 x BIOS FlashBack™ Button(s)

1 x Intel® I225-V 2.5Gb Ethernet

1 x DisplayPort

1 x HDMI

5 x Audio jack(s)

Kích thước

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
