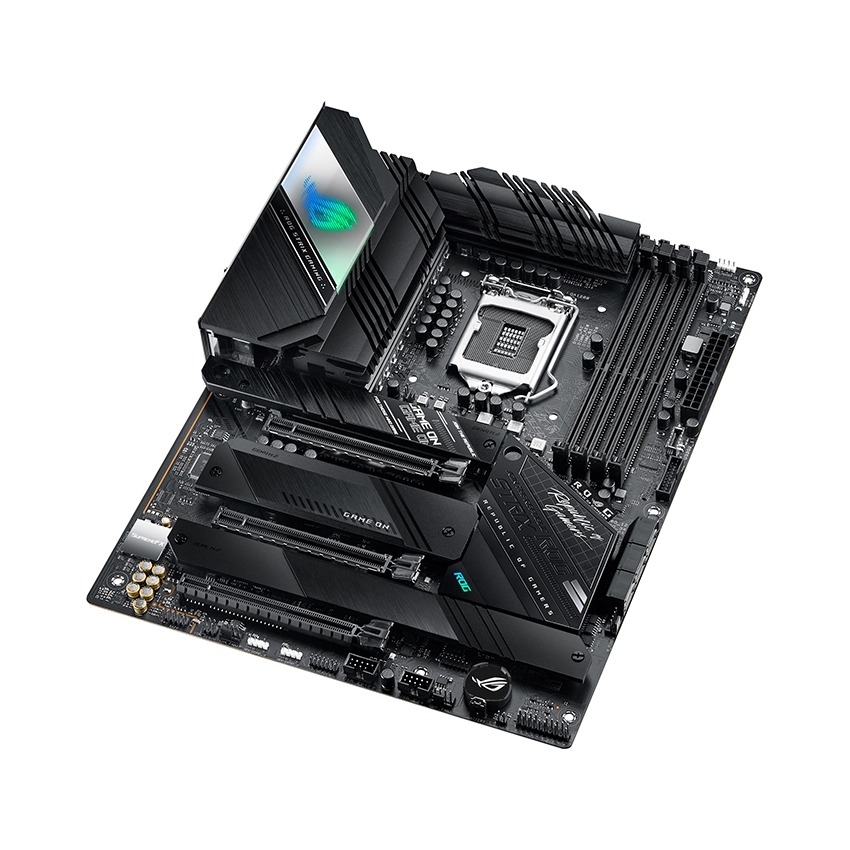

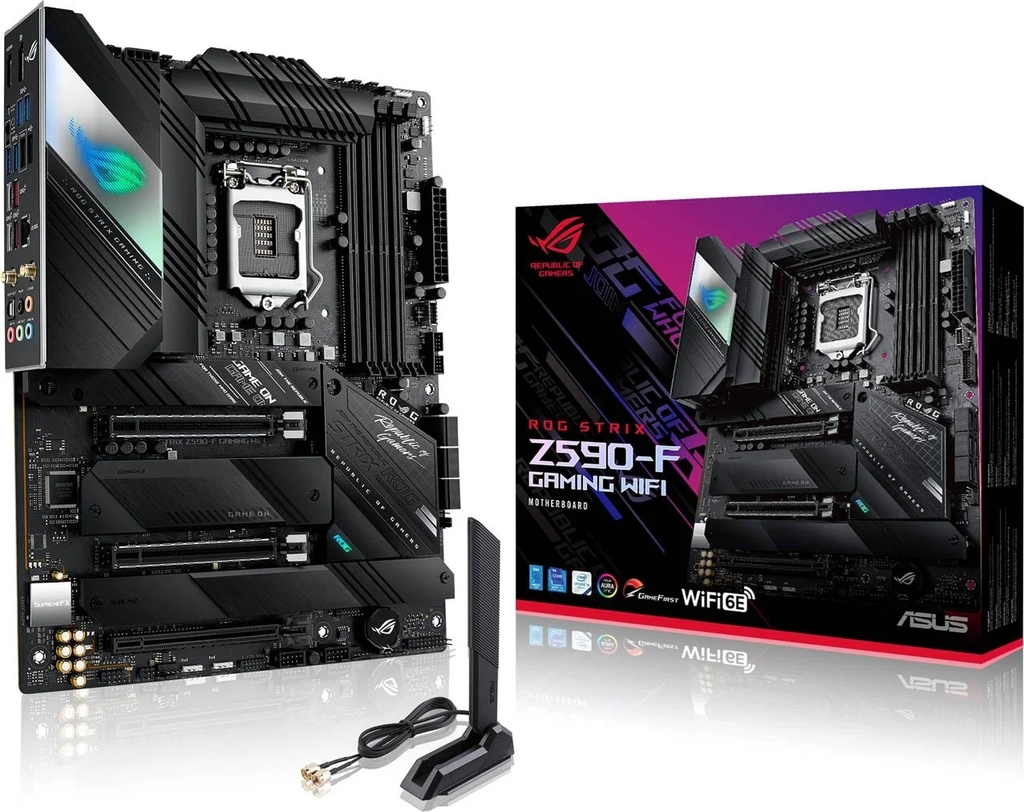

Mainboard ASUS ROG STRIX Z590-F GAMING WIFI

Loại sản phẩm

Mainboard - Bo mạch chủ

CPU hỗ trợ

Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z590 Chipset

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC)

Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Hình ảnh

1 x DisplayPort 1.4**
1 x HDMI 2.0

* Graphics specifications may vary between CPU types.


"** For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.


Please refer to www.intel.com for any update. "


*** For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.


**** VGA resolution support depends on processors' or graphic cards' resolution.

Khe cắm mở rộng

2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors


2 x PCIe 4.0/3.0 x16 slot(s)*


- Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s)


- Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s)


Intel® Z590 Chipset


1 x PCIe 3.0 x16 slot (supports x4 mode)*


* Support PCIe bandwidth bifurcation for RAID on CPU function.

Ổ cứng hỗ trợ

Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th &10th Gen Processors*


M.2_1 slot (Key M), type 2242/2260/2280/22110


- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs


M.2_2 slot (Key M), type 2242/2260/2280/22110


- Intel® 11th processors support PCIe 4.0 x4 mode


- Intel® 10th processors support PCIe 3.0 x4 mode


Intel® Z590 Chipset


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*


6 x SATA 6Gb/s ports


Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.


To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

LAN

1 x Intel® I225-V 2.5Gb Ethernet

Âm Thanh

- SupremeFX Shielding Technology
- ALC4080 + Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover

USB

Rear USB: Total 10 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB: Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Cổng kết nối (I/O Phía sau)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Intel® Wi-Fi 6E
1 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Cổng kết nối (I/O bên trong)

1 x Thunderbolt 4 header

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


3 x 4-pin Chassis Fan headers


1 x VRM heatsink Fan header


1 x W_PUMP+ header


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


4 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x AURA Addressable Gen 2 headers


1 x AURA RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý

WOL by PME, PXE

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
