Sản phẩm |
Bo mạch chủ |
|
Tên Hãng |
Gigabyte |
|
Model |

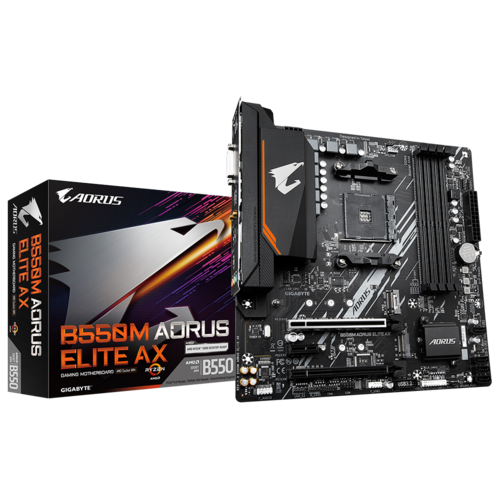

B550M AORUS ELITE AX |
|
CPU hỗ trợ |
AMD |
|
Chipset |
AMD B550 |
|
RAM hỗ trợ |
4 x DDR4 DIMM sockets supporting up to 128 GB |
|
Khe cắm mở rộng |
1 x PCI Express x16 slot (PCIEX16)
1 x PCI Express x16 slot (PCIEX4)
1 x PCI Express x1 slot (PCIEX1) |
|
Ổ cứng hỗ trợ |
1 x M.2 connector (M2A_CPU)
1 x M.2 connector (M2B_SB)
4 x SATA 6Gb/s |
|
Cổng kết nối (Internal) |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button |
|
Cổng kết nối (Back Panel) |
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
|
LAN / Wireless |
Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
|
Kích cỡ |
Micro ATX Form Factor; 24.4cm x 24.4cm |
