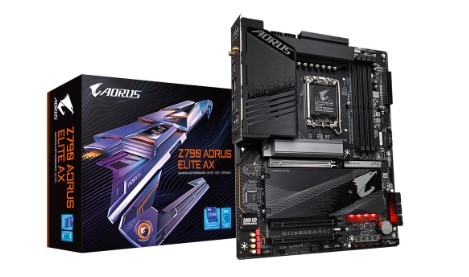

Mainboard Gigabyte Z790 AORUS ELITE AX​ DDR5 (Wifi+Bluetooth)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

Z790 AORUS ELITE AX

CPU hỗ trợ

Intel

Chipset

Z790

RAM hỗ trợ

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

Khe cắm mở rộng

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Ổ cứng hỗ trợ

CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C^® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x Clear CMOS button

1 x reset jumper

1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI 2.0 port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

LAN / Wireless

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel^® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
