MSI Mã: B760 GAMING PLUS WIFI

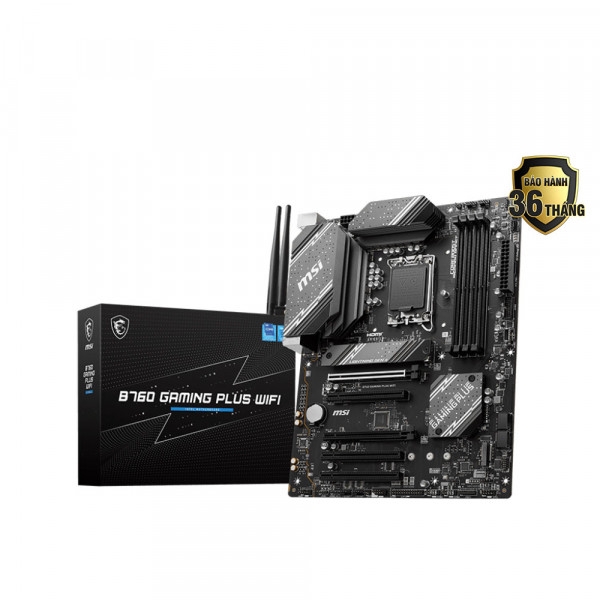

Mainboard MSI B760 GAMING PLUS WIFI D5

5/5 · 2 đánh giá

4.050.000₫ Giá gốc 4.700.000₫ -13%

Tiết kiệm 650.000₫

Trả góp qua thẻ, công ty tài chính

Thanh toán

  • Chuyển khoản: sau khi nhân viên xác nhận đơn.
  • Trả góp: thẻ tín dụng (3 hoặc 6 tháng) hoặc HD SAISON, Home Credit (6–12 tháng).
  • Tại cửa hàng: tiền mặt, quẹt thẻ.
  • COD: trong bán kính 5 km quanh cửa hàng.

HD SAISONHome Credit

Hướng dẫn thanh toán

Mô tả sản phẩm



Thông số kỹ thuật

Thông số kỹ thuật
Hãng sản xuất MSI
Model

B760 GAMING PLUS  WIFI

CPU hỗ trợ

Supports 12th/13th Gen Intel® Core™ Processors

Pentium® Gold and Celeron® Processors LGA 1700

Chipset Intel B760
Hỗ trợ Ram

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Khe cắm mở rộng

5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Hỗ trợ ổ cứng 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)

LAN

Realtek® RTL8125BG 2.5G LAN

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Cổng kết nối bên trong

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

LED

4x EZ Debug LED

Cổng kết nối phía sau
  • Keyboard / Mouse
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • S/PDIF-OUT
Kích thước  ATX 243.84mmx304.8mm
Bảo hành 36 Tháng
