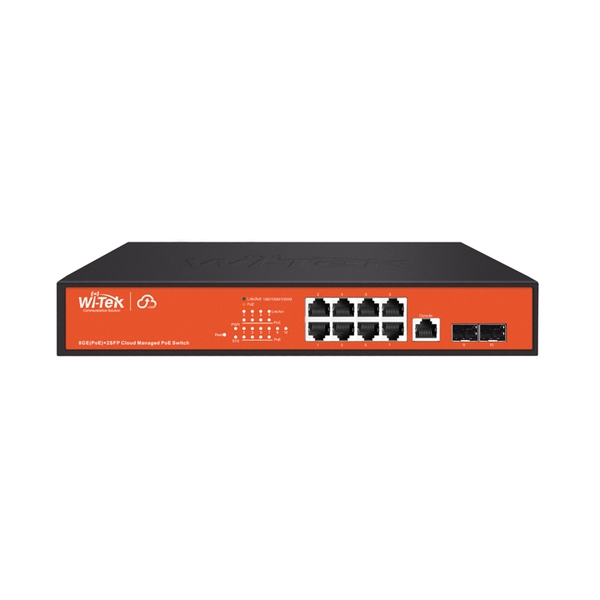

Switch Wi-Tek 8 Port POE + 2 Port SFP WI-PCMS310GF
Thông số kỹ thuật
| Hardware Version | V1 | ||
| Interface | 8×10/100/1000Mbps RJ45 Ports 2xGigabit SFP Slots 1xConsole Port |
||
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) |
||
| PoE | PoE Standard | 802.3af/at | |
| PoE Ports | 8 up to 32W | ||
| PoE Power Budget | 140W | ||
| Power Supply | 100-240 V AC~50/60 Hz | ||
| Switching Capacity | 20Gbps | ||
| Packet Forwarding Rate | 14.88Mpps | ||
| Jumbo Frame | 9KB | ||
| MAC Address Table | 8K | ||
| Dimensions ( W x D x H ) | 280*180*44mm | ||
| Fan Quantity | 1 Fan | ||
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV | ||
| Electrostatic Standard | Contact 6KV Air 8KV | ||
| Transmission Mode | Store— Forward | ||
| Installation | Rack- Mounted | ||
| Software Features | |||
| Spanning Tree | IEEE 802.1D – STP | ||
| IEEE 802.1w – RSTP | |||
| IEEE 802.1s – MSTP | |||
| BPDU Guard | |||
| STP Root Guard | |||
| Loop Detection | |||
| VLAN | Management VLAN | ||
| Private VLAN | |||
| Voice VLAN | |||
| Monitor VLAN | |||
| Q- in-Q | |||
| Protocol- Based VLAN | |||
| MAC- Based VLAN | |||
| Port | LACP | ||
| Static | |||
| EEE | |||
| Jumbo Frame | |||
| Error- Disable | |||
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | |||
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | |||
| Security | Port Isolation | ||
| IEEE802.1x AAA | |||
| ACL support L2+/L3/ L4 IPv6 ACL | |||
| Dynamic ARP Protection | |||
| Broadcast Storm | |||
| RADIUS/TACACS+ | |||
| RADIUS Authentication ( RFC2138) | |||
| SSH v1.5/v2 .0 | |||
| Anti- DDoS Attack | |||
| DHCP Snooping | |||
| QOS | Ipv4 QoS (QCEs) | ||
| Ipv6 QoS (QCEs) | |||
| Priority Algorithm(WRR ,Absolute Priority, DSCP & CS) | |||
| Class of Service(Port- Based ,802.1p CoS DSCP IP Priority, TCP/ UDP IPv4/ IPv6 ) | |||
| Bandwidth(Input /Output) | |||
| L2 M ulticast | IGMP Snooping v1/v2/v3 | ||
| MLDS nooping v1/v2 | |||
| MVR | |||
| IPV6 | Ipv6/IPv4 | ||
| Ipv6 Web/SSL | |||
| Ipv6 SNTP | |||
| Ipv6 Telnet/SSH | |||
| Ipv6 Ping/Traceroute | |||
| Ipv6 TFTP | |||
| Ipv6 RADIUS/TACACS+ | |||
| Ipv6 SNMP | |||
| Management | SNMP (v1 , v2c , v3 ) | ||
| RMON ( 1 , 2 , 3 & 9 ) | |||
| Firmware Upgrade | |||
| Configuration Export/import | |||
| DHCP (Option 82, Option 66, Option 67) | |||
| System Log Supports Event/Error Log | |||
| Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet) | |||
| LLDP ( IEEE802.1AB) | |||
| LLDP- MED | |||
| UDLD | |||
| DNS Client | |||
| Traceroute | |||
| Ping | |||
| DDMI | |||
| NTP/ SNTP ( RFC2030) | |||
| Advanced Features | ONVIF (ONVIF Detection , ONVIF Server(NLM) ) | ||
| Batch Firmware Upgrading | |||
| Intelligent Network Monitoring | |||
| Abnormal Event Warnings | |||
| Automatic Device Discovery | |||
| Support Cloud Management | |||
| Support Remote Management | |||
| Support Cloud VLAN Configuration | |||
| Support Topology Display | |||
| Support Cloud Control Port Configuration | |||
| Others | |||
| Certfication | CE , FCC , RoHS | ||
| Package Contents | Gigabit Switch | ||
| Power Cord | |||
| Quick Installation Guide | |||
| Rubber Feet | |||
| Environment | Operating Temperature: 0–40 ℃ Storage Temperature: -40– 70 ℃ Operating Humidity: 10– 90% RH non-condensing Storage Humidity: 5– 90% RH non-condensing |
||
