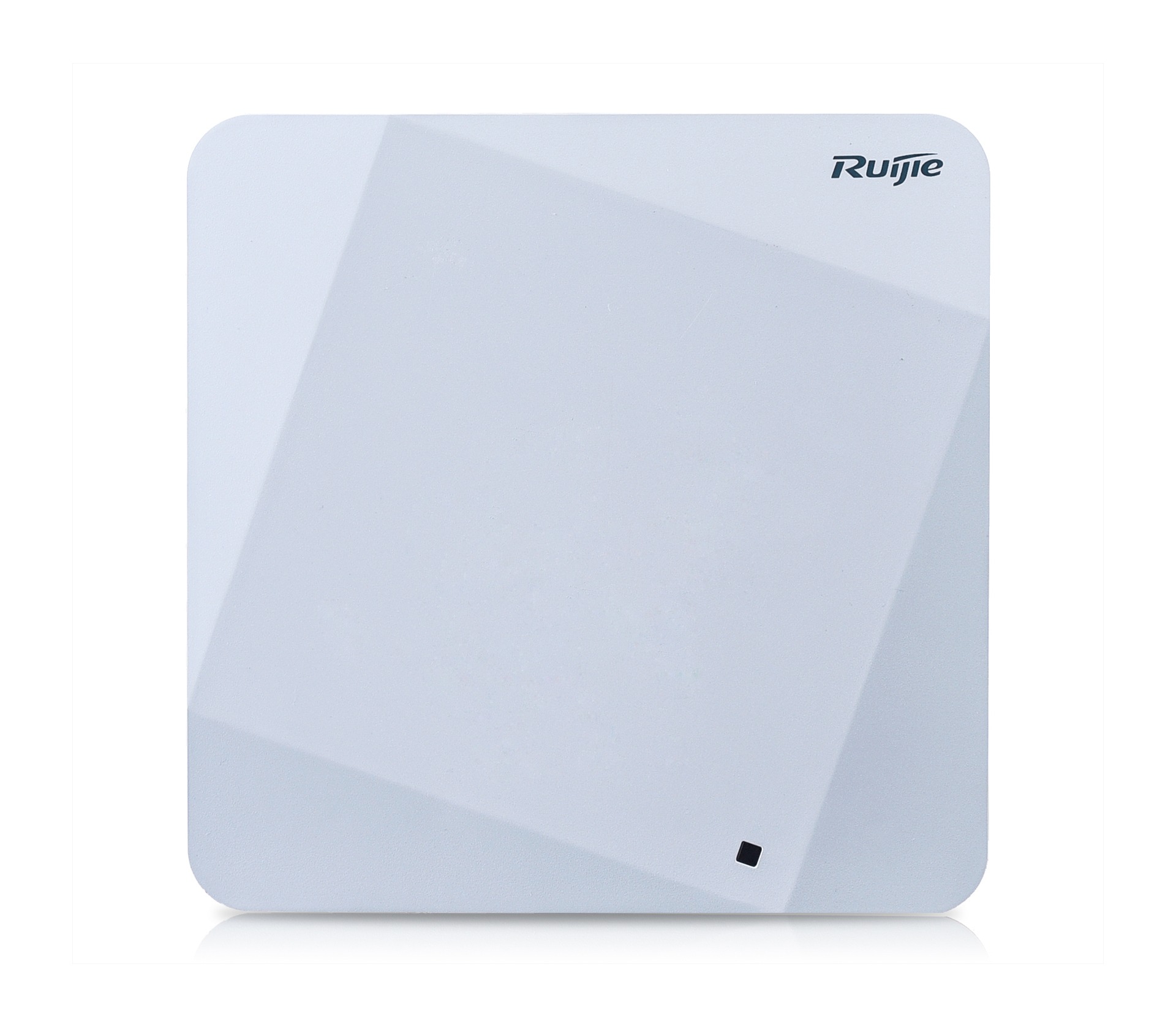

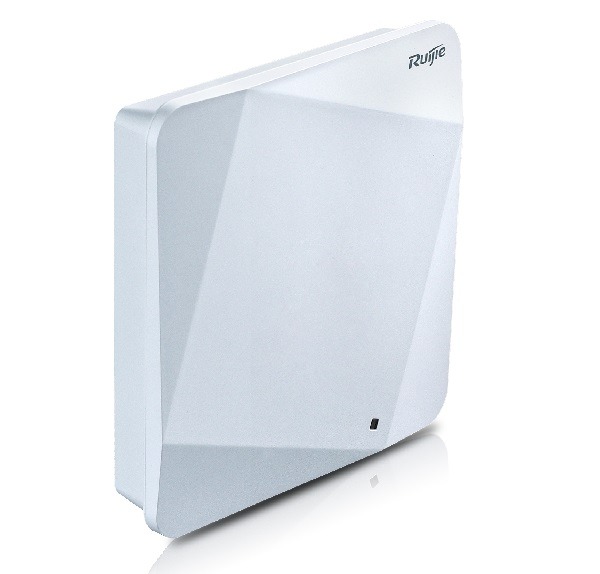

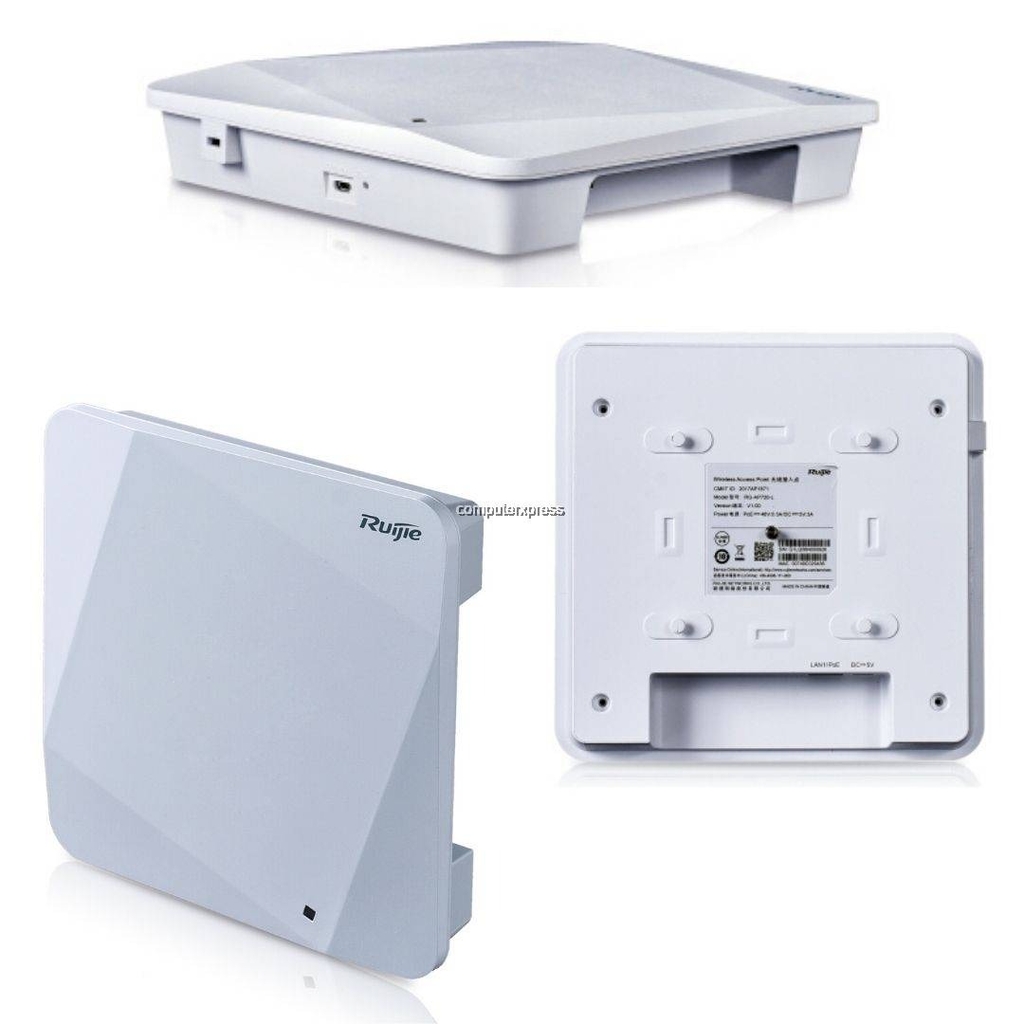

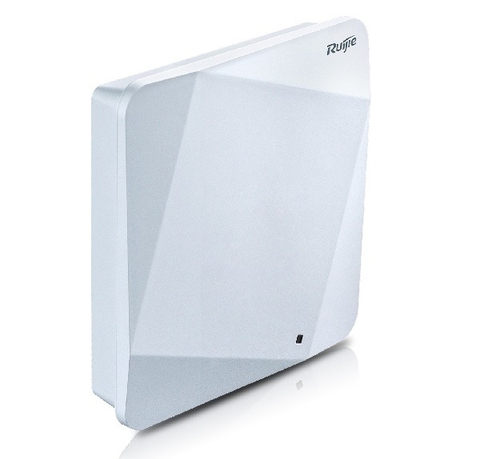

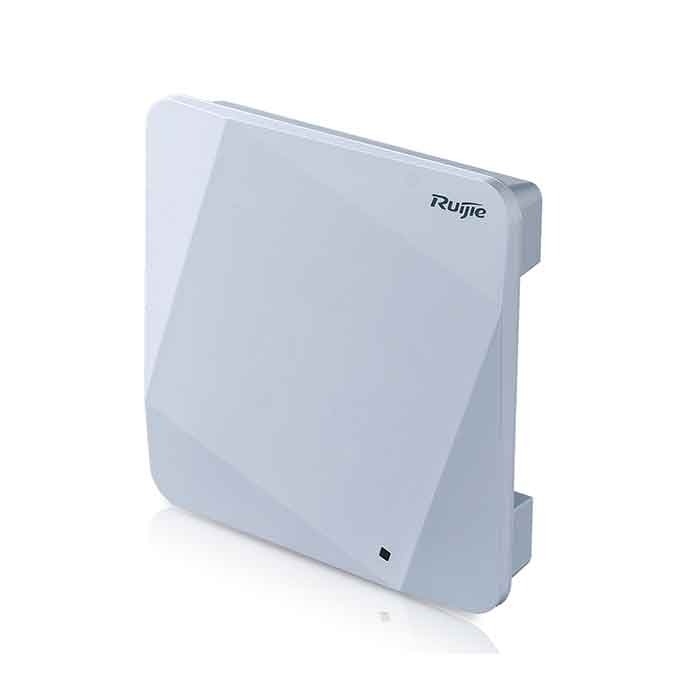

Thiết bị mạng wifi Ruijie RG-AP710 (gắn tường để bàn 2 băng tầng 2.4Ghz và 5Ghz, tốc độ truy cập lên tới 1.167Gbps)
RUIJIE RG-AP710 thiết kế băng tần kép đồng thời 802.11ac, tốc độ dữ liệu AP710 lên tới 1.167Gbps, đủ cho môi trường cửa hàng bán lẻ và văn phòng nhỏ. Cộng với quản lý đám mây 100% và Bảo hành 3 năm, AP710 nhập cảnh cung cấp sự cân bằng hoàn hảo về hiệu suất giá cho người dùng doanh nghiệp vừa và nhỏ.
Thiết bị Access point wifi trong nhà AP710 sử dụng thiết kế đơn giản và phong cách để phù hợp với các kịch bản khác nhau. Không cài đặt phần mềm, Cung cấp nhanh 4 bước bởi ứng dụng di động đám mây của Ruijie
Ruijie Networks là một trong những nhà cung cấp thiết bị mạng cho doanh nghiệp hàng đầu tại Trung Quốc. Có thị phần số 1 về WLAN, số 3 về switch, chuyên cung cấp WLAN, SWITCH, ROUTER, INTERNET GATEWAY, FIREWALL, và SOFTWARE.
Ruijie Networks cung cấp các giải pháp chuyên nghiệp, ứng dụng cho các ngành như: Giáo dục, y tế, chính phủ, giao thông vận tải, … với các tính năng ưu việt như không bị gián đoạn, chuyển mạch nhanh đáp ứng yêu cầu cho các dự án lớn và luôn đảm bảo uy tín
C5802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to C55.850GHz (vary depending on countries)
Antenna
Built-in Antenna
Max Throughput
1167Mbps
Spatial Streams
2
Maximum Transmit Power
100mW
IP Rating
IP41
Interfaces
Service Ports
1x 10/100/1000BASE-T Ethernet uplink
Console Ports
1x Console Port
Power
Power Supply
local power supply (DC 5V/3A)
PoE (802.3af)
Power Consumption
<12.95W
WLAN
Maximum clients per AP
256
BSSID capacity
32
Remote Intelligent Perception Technology (RIPT)
Support
Intelligent load balancing based on the number of users or traffic
Support
STA control
Support
Bandwidth control
Support
Preference for 5GHz (band select)
Support
Security
PSK, Web, 802.1x authentication
Support
PPSK authentication
Support
Data encryption
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication
Support
User isolation
Support
Rogue AP detection and countermeasure
Support
RADIUS
Support
Wireless Intrusion Detection System(WIDS)
Support
Wireless Intrusion Prevention System (WIPS)
Support
Routing
IPv4 address
Static IP address or DHCP reservation
IPv6 address
Manual or automatic configuration
Multicast
Multicast to unicast conversion
Management and Maintenance
Network management
SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management
Support
FAT/FIT switching
Support
Physical Specification & Others
Lock
Support
LED Indicators
1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Dimensions (W x D x H)
194 × 194 × 37 mm
Weight
0.42kg
Environmental Specifications
Temperature
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
