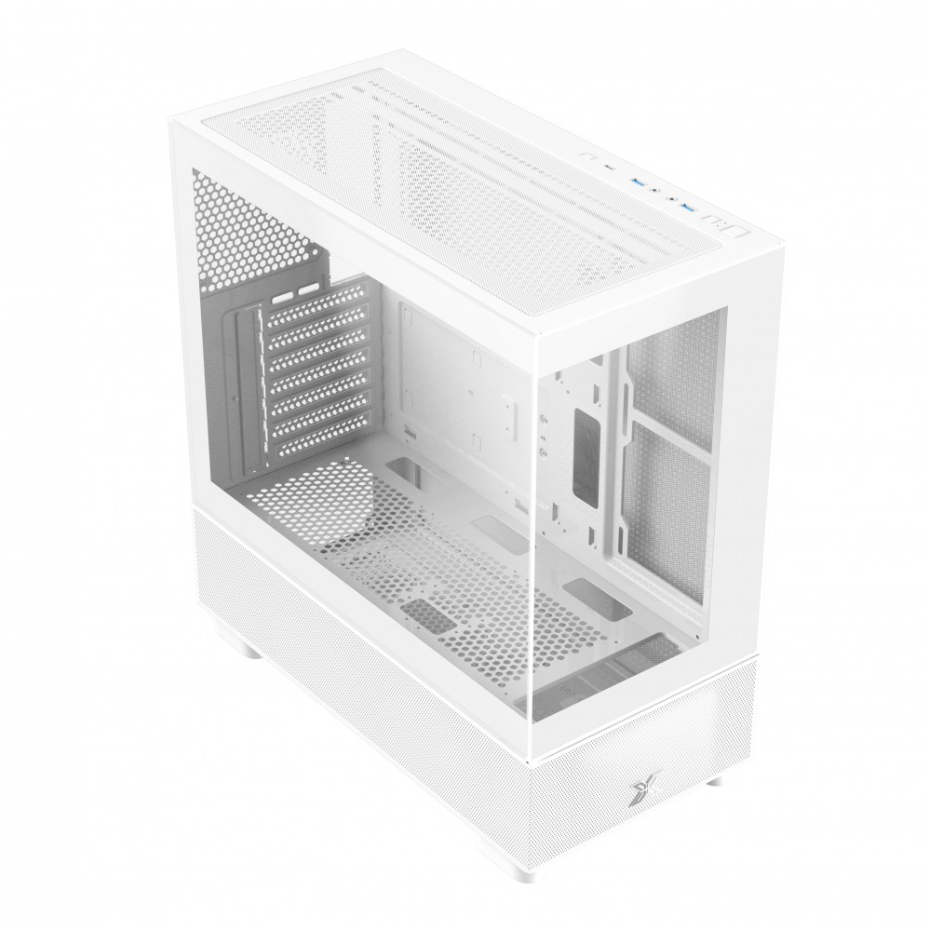

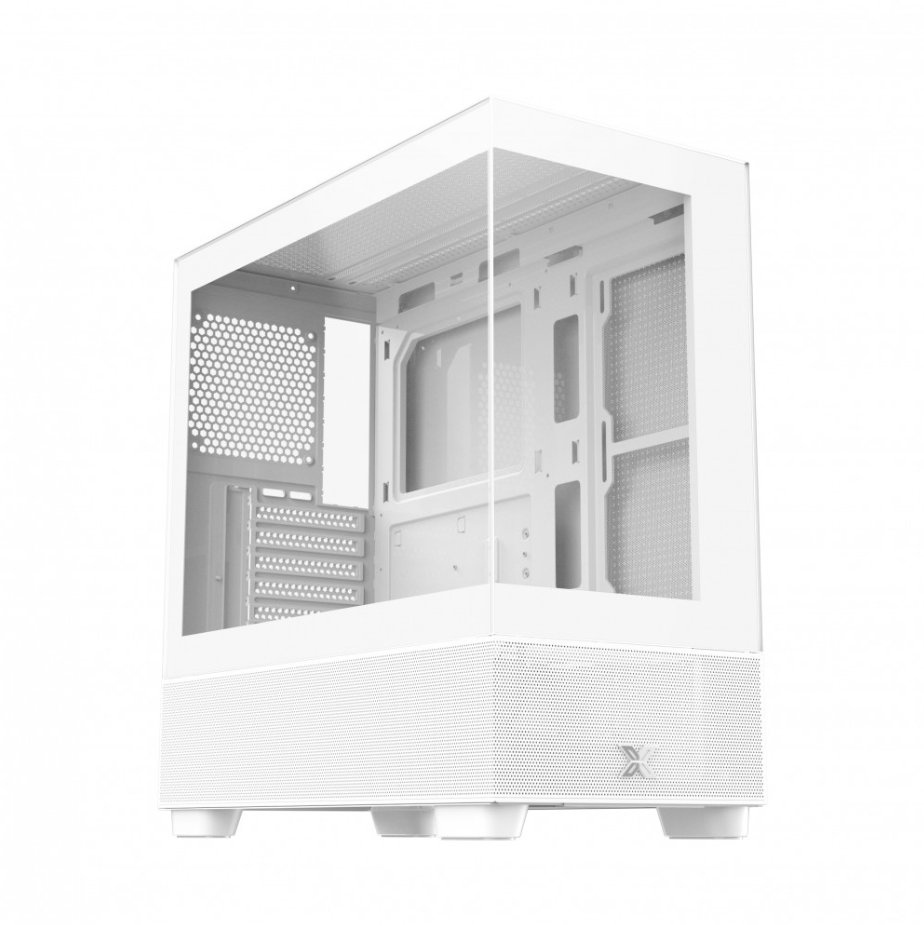

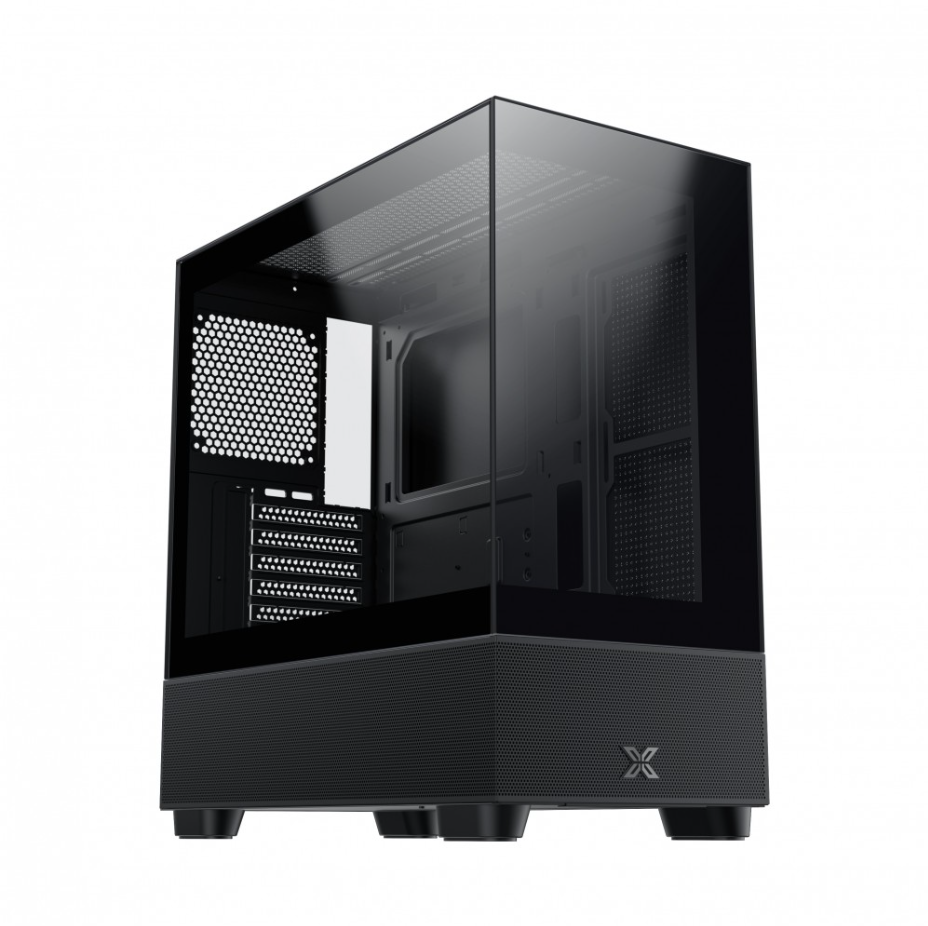

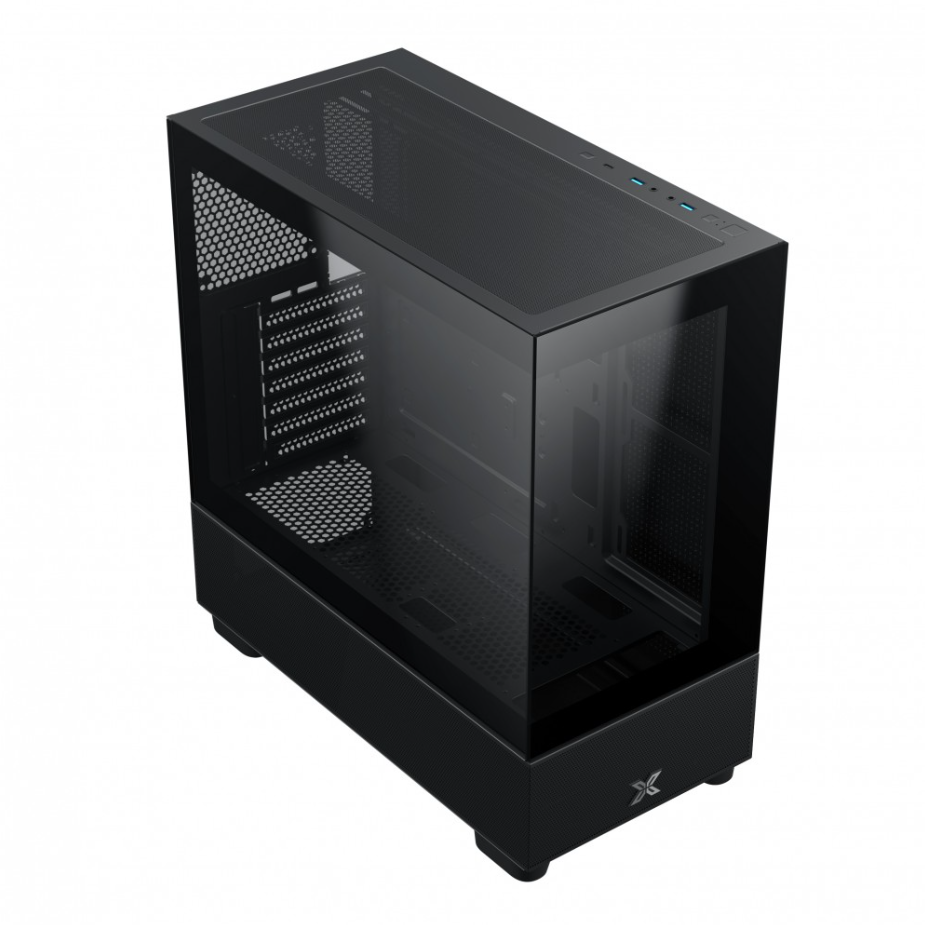

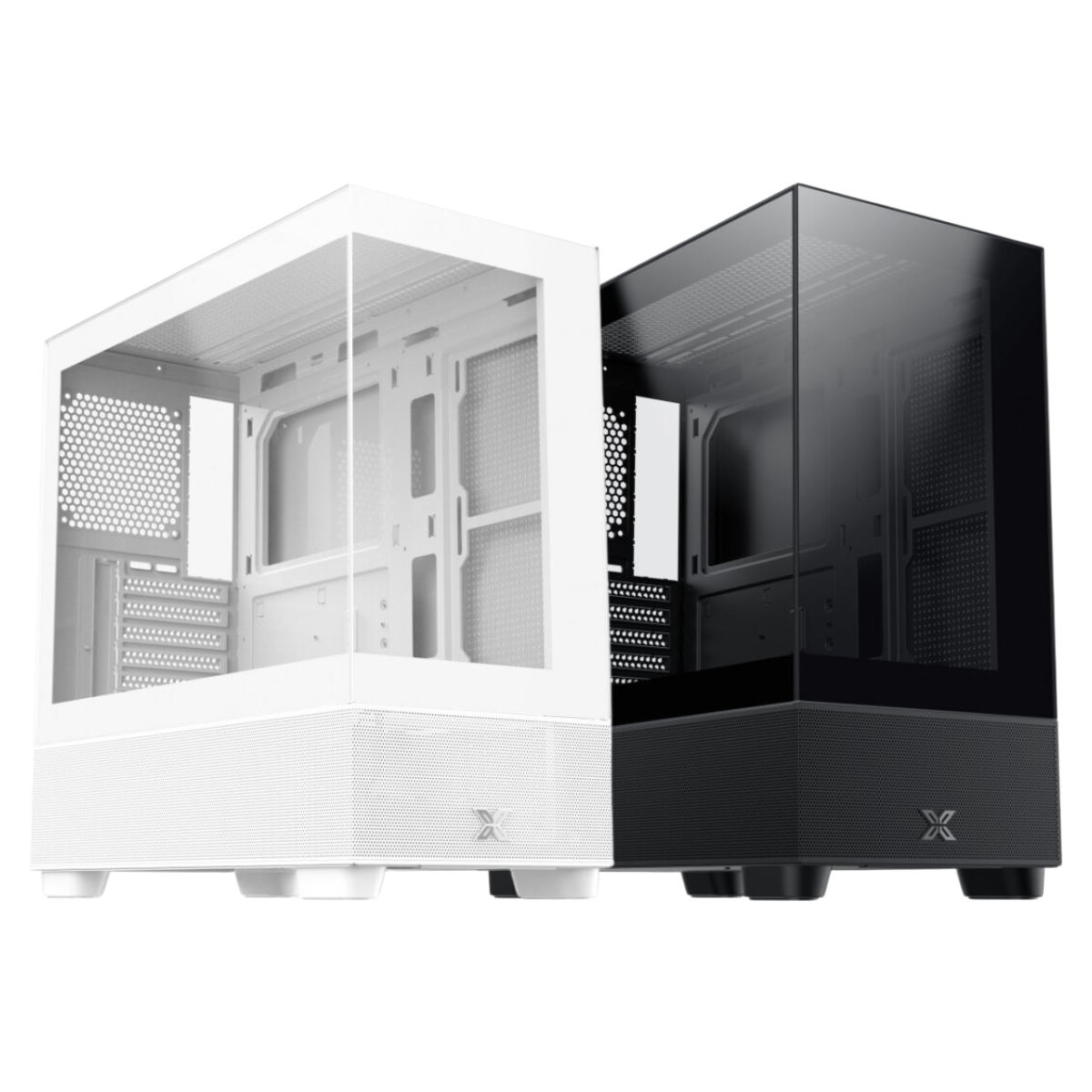

Product name | Endorphin Air |
Vật liệu | Thép |
KÍch thước | 435x218x456 (LxWxH) |
HDD&SSD |
HDD Cage (Bottom): 3.5"x1 HDD Cage (Top): 3.5"x2.5" combo x1 SSD Bracket: 2.5"x2 |
Khe cắm mở rộng |
7 khe tiêu chuẩn |
Hỗ trợ bo mạch chủ | E-ATX, ATX, M-ATX, Mini ITX |
Nguồn cấp | Standard PS2 ATX PSU |
Fan support |
PSU PS2 ATX tiêu chuẩn |
Fan support |
TOP: 120mm x3 hoặc 140mm x2 PSU shroud: 120mm x3 Rear: 120mmx1 MB Panel: 120mm x2 (EATX MB Width ≤ 280mm) |
Radiator Support |
TOP: 360mm (Memory height ≤ 45mm) Rear: 120mm |
I/O Panel |
USB 3.0x1 Tyce C x1 HD Audio |
CPU Cooler Clearance | 170mm |
VGA Lenght Limitation |
285mm (Fan on MB Panel) 420mm (No Fan on MB Panel) |
PSU Lenght Limitation |
220mm |
