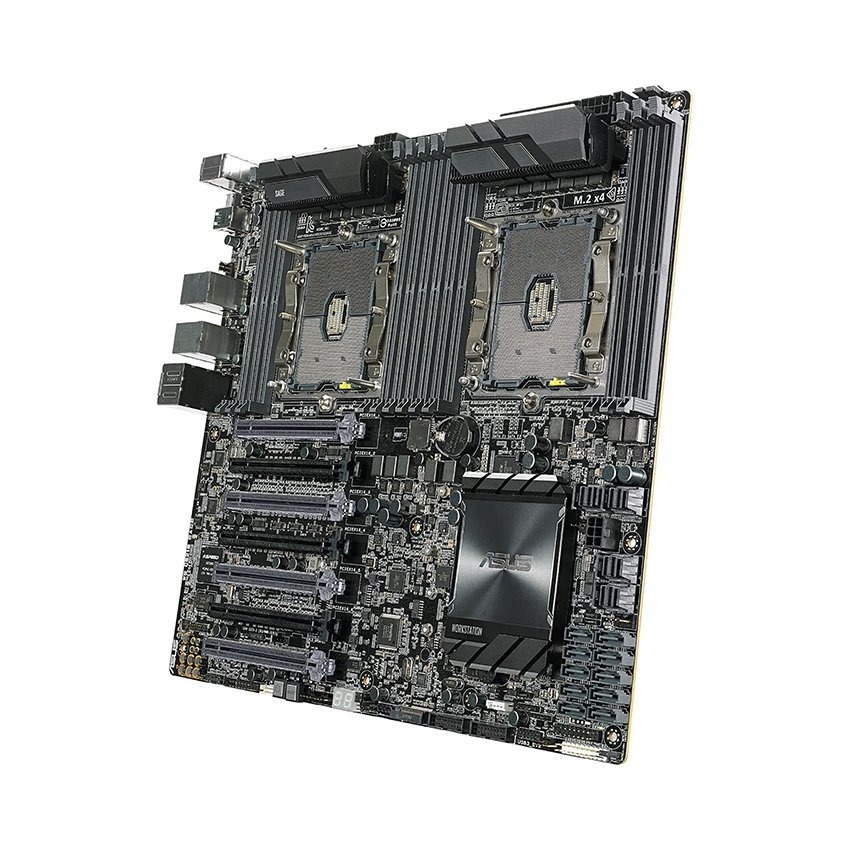

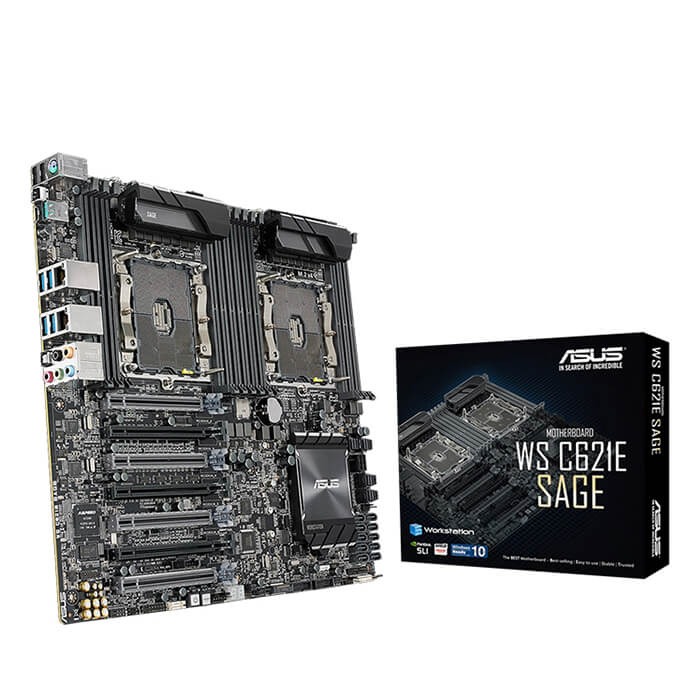

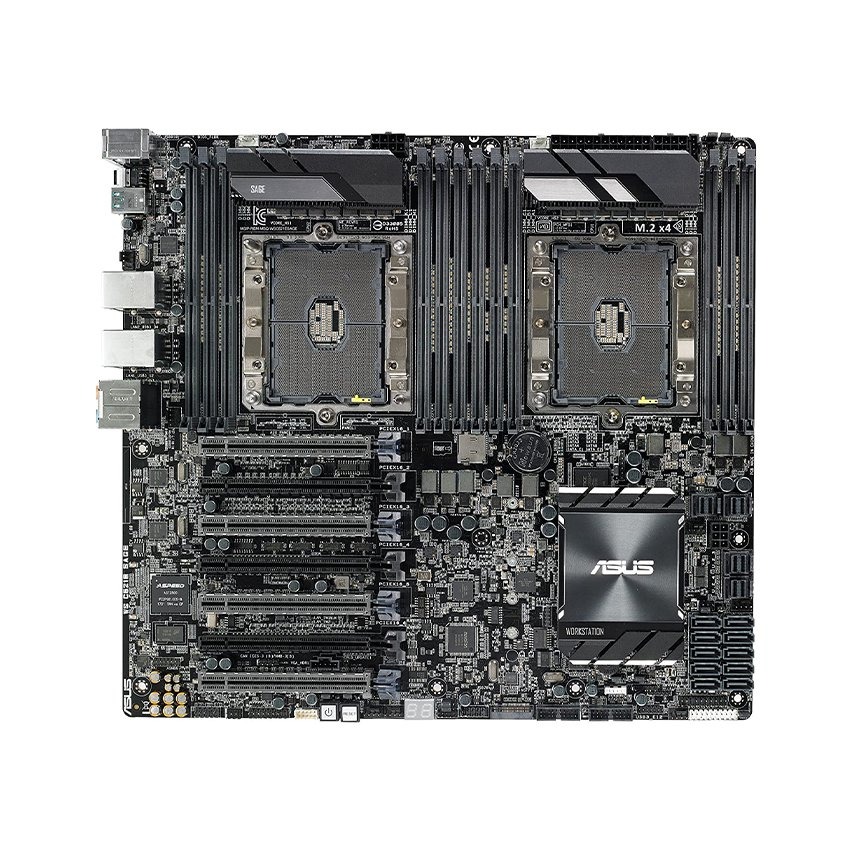

Mainboard ASUS WS C621E SAGE (Dual CPU Workstations)

Hãng sản xuất

Asus

Chủng loại

WS C621E SAGE (Dual CPU Workstations)

CPU hỗ trợ

Intel® Xeon® Scalable Processors Family (205W)

Chipset

Intel C621 chipset

Bộ nhớ trong

12 x DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM Memory

VGA onboard

Aspeed AST2500 with 64 MB VRAM

Âm thanh

Realtek® S1220A 7.1-Channel High Definition Audio CODEC

Khe mở rộng

3 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)

2 x PCIe 3.0 x16 (x8 mode)

Supports NVIDIA® 4-Way SLI™ Technology

Supports AMD 4-Way CrossFireX Technology

Chuẩn lưu trữ

Intel® C621 Chipset :

8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10

ASMedia® SATA 6Gb/s controller :

2 x SATA 6Gb/s port(s),

4 x U.2 connector,

1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)

Cổng giao tiếp sau

1 x PS/2 keyboard/mouse combo port(s)

2 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 *4

4 x USB 3.1 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

1 x USB BIOS Flashback Button(s)

1 x 8-channel Audio I/O

Công nghệ tích hợp

Kích thước

EEB Form Factor 12 inch x 13 inch ( 305 cm x 330 cm )
